Overview

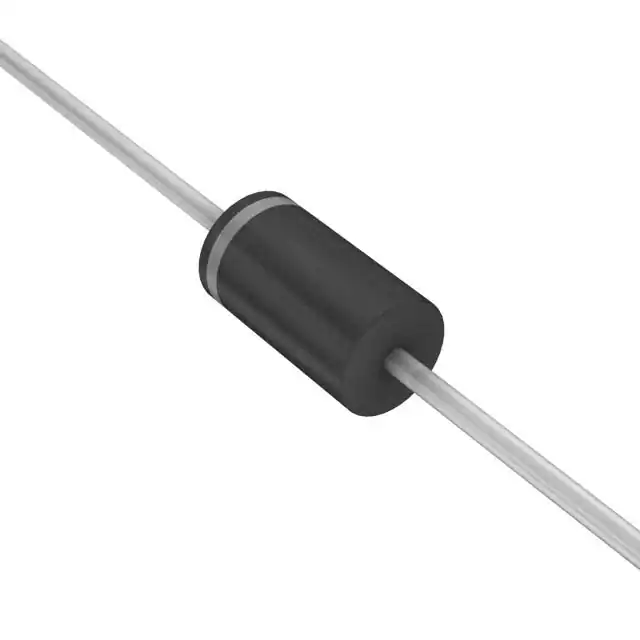

The 1.5KE68AHE3_A/C is a Transient Voltage Suppressor (TVS) diode manufactured by Vishay General Semiconductor - Diodes Division. This component is part of the 1.5KE series, which is known for its high reliability and compliance with automotive standards such as AEC-Q101. The 1.5KE68AHE3_A/C is designed to protect electronic circuits from voltage spikes and transient events, making it a crucial component in various applications, particularly in the automotive sector.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 1.5KE68AHE3_A/C |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Description | TVS DIODE 58.1V 92V 1.5KE |
| Voltage - Reverse Standoff (Typ) | 58.1V |
| Voltage - Clamping (Max) @ Ipp | 92V |
| Voltage - Breakdown (Min) | 64.6V |
| Unidirectional Channels | 1 |
| Power - Peak Pulse | 1500W (1.5kW) |
| Package / Case | DO-201AA, DO-27, Axial |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs) | 16.3A |
Key Features
- High Peak Pulse Power: The 1.5KE68AHE3_A/C can handle up to 1500W of peak pulse power, making it suitable for protecting against high-energy transients.
- AEC-Q101 Qualified: This component is qualified to the AEC-Q101 standard, ensuring its reliability and performance in automotive applications.
- Wide Operating Temperature Range: It operates over a temperature range of -55°C to 175°C, making it versatile for various environmental conditions.
- RoHS Compliant: The component is lead-free and compliant with RoHS standards, ensuring environmental sustainability.
- Through Hole Mounting: The axial package allows for easy through-hole mounting, simplifying the assembly process.
Applications
The 1.5KE68AHE3_A/C is primarily used in automotive applications to protect electronic circuits from voltage transients and spikes. It is also suitable for use in other high-reliability applications where transient voltage suppression is critical.
Q & A
- What is the primary function of the 1.5KE68AHE3_A/C?
The primary function of the 1.5KE68AHE3_A/C is to protect electronic circuits from voltage transients and spikes.
- What is the peak pulse power handling capability of the 1.5KE68AHE3_A/C?
The 1.5KE68AHE3_A/C can handle up to 1500W of peak pulse power.
- Is the 1.5KE68AHE3_A/C AEC-Q101 qualified?
- What is the operating temperature range of the 1.5KE68AHE3_A/C?
The operating temperature range is -55°C to 175°C.
- Is the 1.5KE68AHE3_A/C RoHS compliant?
- What type of mounting does the 1.5KE68AHE3_A/C use?
The 1.5KE68AHE3_A/C uses through-hole mounting.
- What is the typical reverse standoff voltage of the 1.5KE68AHE3_A/C?
The typical reverse standoff voltage is 58.1V.
- What is the maximum clamping voltage of the 1.5KE68AHE3_A/C?
The maximum clamping voltage is 92V.
- What is the minimum breakdown voltage of the 1.5KE68AHE3_A/C?
The minimum breakdown voltage is 64.6V.
- What is the peak pulse current rating of the 1.5KE68AHE3_A/C?
The peak pulse current rating is 16.3A.
