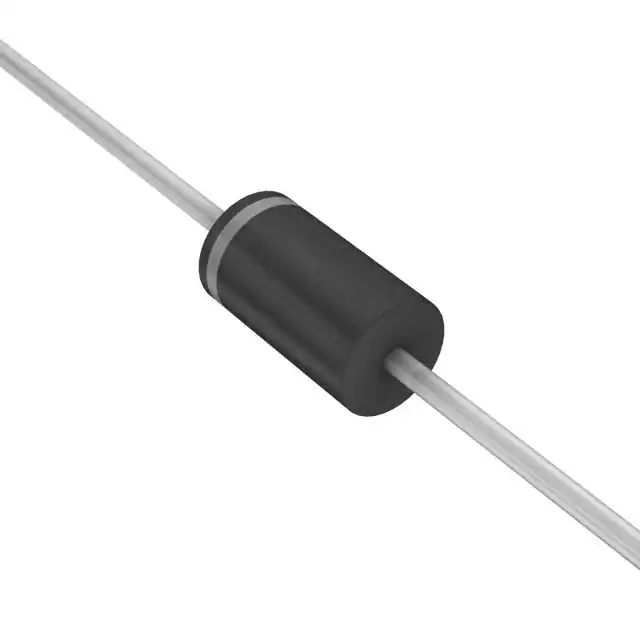

Vishay General Semiconductor - Diodes Division 1.5KE68A-E3/51

Manufacturer No:
1.5KE68A-E3/51
Manufacturer:
Vishay General Semiconductor - Diodes Division
Package:
Bulk
Description:
TVS DIODE 58.1VWM 92VC 1.5KE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 1.5KE68A-E3/51 is a Transient Voltage Suppressor (TVS) diode produced by Vishay General Semiconductor - Diodes Division. This component is designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It features a glass passivated chip junction in a DO-201 package, ensuring high reliability and performance.

Key Specifications

Property Value
VR (V standoff) 58.1
Watts (W) 1500
IPP 10x1000µs (A) 16.5
MIN VBR@IT (V) 64.6
MAX VBR@IT (V) 71.4
Vc (V) 92
IT (mA) 1
Ir@Vr (µA) 1
Operating Temperature Max (°C) 175
Polarity Unipolar
Package DO-201
Peak Pulse Power - 10x1000 (W) 1500
Surge Life 16.5
Tolerance % 5

Key Features

  • Glass passivated chip junction in DO-201 package
  • 1.5 kW peak pulse power capability at 10/1000μs waveform
  • Fast response time: typically less than 1.0ps from 0 Volts to BV min
  • Excellent clamping capability
  • Typical failure mode is short from over-specified voltage or current
  • Whisker test conducted based on JEDEC JESD201A per its table 4a and 4c
  • ESD protection of data lines in accordance with IEC 61000-4-2 (30 kV Air, 30 kV Contact)
  • EFT protection of data lines in accordance with IEC 61000-4-4
  • Low incremental surge resistance

Applications

  • Computers
  • Consumer electronics
  • I/O Interfaces
  • VCC buses
  • Vulnerable circuits in industrial and telecommunications applications

Q & A

  1. What is the peak pulse power capability of the 1.5KE68A-E3/51?

    The 1.5KE68A-E3/51 has a peak pulse power capability of 1500 W at 10/1000μs waveform.

  2. What is the operating temperature range of the 1.5KE68A-E3/51?

    The operating temperature maximum is 175°C.

  3. What type of package does the 1.5KE68A-E3/51 come in?

    The component is packaged in a DO-201 package.

  4. Is the 1.5KE68A-E3/51 ESD protected?
  5. What are the typical applications of the 1.5KE68A-E3/51?
  6. What is the minimum breakdown voltage (VBR) of the 1.5KE68A-E3/51?

    The minimum breakdown voltage (VBR) is 64.6 V.

  7. What is the maximum clamping voltage (Vc) of the 1.5KE68A-E3/51?

    The maximum clamping voltage (Vc) is 92 V.

  8. Is the 1.5KE68A-E3/51 RoHS compliant?
  9. What is the polarity of the 1.5KE68A-E3/51?
  10. What is the typical failure mode of the 1.5KE68A-E3/51?

Product Attributes

Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):58.1V
Voltage - Breakdown (Min):64.6V
Voltage - Clamping (Max) @ Ipp:92V
Current - Peak Pulse (10/1000µs):16.3A
Power - Peak Pulse:1500W (1.5kW)
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:DO-201AA, DO-27, Axial
Supplier Device Package:1.5KE
