Overview
The TVS0500DRVR, produced by Texas Instruments, is a 5-V Flat-Clamp Surge Protection Device designed to protect systems from high power transients and lightning strikes. This device is particularly suited for industrial signal lines and other applications requiring robust surge and ESD protection. It features a unique feedback mechanism that ensures precise flat clamping during fault events, keeping the system exposure below 10 V. This allows designers to select system components with lower voltage tolerance, reducing system costs and complexity without compromising on robustness.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Maximum Surge Current (IEC 61000-4-5, 8/20 µs) | 43 | A |
| Maximum Surge Power (IEC 61000-4-5, 8/20 µs) | 400 | W |
| Maximum Surge Current (IEC 61643-321, 10/1000 µs) | 22 | A |
| Standoff Voltage | 5 | V |
| Max Clamping Voltage at 43 A (8/20 µs) | 9.2 | V |
| Leakage Current at 27°C | 70 pA (typical) | pA |
| Leakage Current at 85°C | 6.5 nA (typical) | nA |
| Capacitance | 155 pF | pF |
| Operating Temperature Range | -40 to 125 | °C |

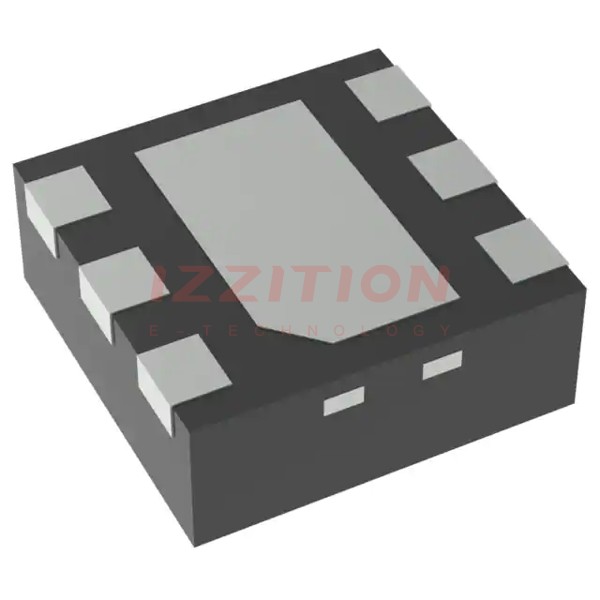

| Package Type | WSON-6 (DRV) | |
| Package Footprint | 4 mm² (2mm x 2mm) | mm² |
Key Features
- Protection Against 2 kV, 42 Ω IEC 61000-4-5 Surge Test for Industrial Signal Lines
- Max Clamping Voltage of 9.2 V at 43 A of 8/20 µs Surge Current
- Standoff Voltage: 5 V
- Tiny 4 mm² Footprint
- Survives over 5,000 Repetitive Strikes of 35 A 8/20 µs Surge Current at 125°C
- Robust Surge Protection: IEC61000-4-5 (8/20 µs): 43 A, IEC61643-321 (10/1000 µs): 22 A
- Low Leakage Current: 70 pA typical at 27°C, 6.5 nA typical at 85°C
- Low Capacitance: 155 pF
- Integrated Level 4 IEC 61000-4-2 ESD Protection and 80 A of IEC 61000-4-4 EFT Protection
Applications
- Industrial Sensors
- PLC I/O Modules
- 5 V Power Lines
- Appliances
- Medical Equipment
- Smart Meters
The TVS0500DRVR is versatile and can be used to protect any power, analog, or digital signal from transient fault conditions caused by the environment or other electrical components.
Q & A
- What is the maximum surge current the TVS0500DRVR can handle according to IEC 61000-4-5 standards?
The TVS0500DRVR can handle up to 43 A of surge current under IEC 61000-4-5 (8/20 µs) conditions.
- What is the standoff voltage of the TVS0500DRVR?
The standoff voltage of the TVS0500DRVR is 5 V.
- What is the maximum clamping voltage at 43 A surge current?
The maximum clamping voltage at 43 A surge current is 9.2 V.
- What is the typical leakage current at 27°C and 85°C?
The typical leakage current is 70 pA at 27°C and 6.5 nA at 85°C.
- What is the capacitance of the TVS0500DRVR?
The capacitance is 155 pF.
- What is the operating temperature range of the TVS0500DRVR?
The operating temperature range is -40°C to 125°C.
- What type of package does the TVS0500DRVR come in?
The TVS0500DRVR comes in a WSON-6 (DRV) package with a 4 mm² footprint.
- Does the TVS0500DRVR have integrated ESD protection?
Yes, the TVS0500DRVR has integrated Level 4 IEC 61000-4-2 ESD protection and 80 A of IEC 61000-4-4 EFT protection.
- How many repetitive strikes of 35 A surge current can the TVS0500DRVR survive at 125°C?
The TVS0500DRVR can survive over 5,000 repetitive strikes of 35 A surge current at 125°C.
- What are some common applications for the TVS0500DRVR?
Common applications include industrial sensors, PLC I/O modules, 5 V power lines, appliances, medical equipment, and smart meters.
