Overview
The TPD8E003DQDR is a robust ESD protection device manufactured by Texas Instruments, designed to safeguard sensitive electronic components from electrostatic discharge (ESD) events. This product falls under the category of ESD protection diodes and is specifically engineered for applications requiring high reliability and minimal signal distortion. Its market positioning targets industries such as consumer electronics, automotive, and industrial automation, where ESD protection is critical. The TPD8E003DQDR stands out for its low capacitance, high ESD protection level, and compact form factor, making it a competitive choice for modern electronic designs.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| ESD Protection Level | ±8 | kV | IEC 61000-4-2 (Contact Discharge) |
| Capacitance | 0.5 | pF | Typical value per channel |
| Operating Voltage | 5 | V | Maximum |
| Number of Channels | 8 | - | - |

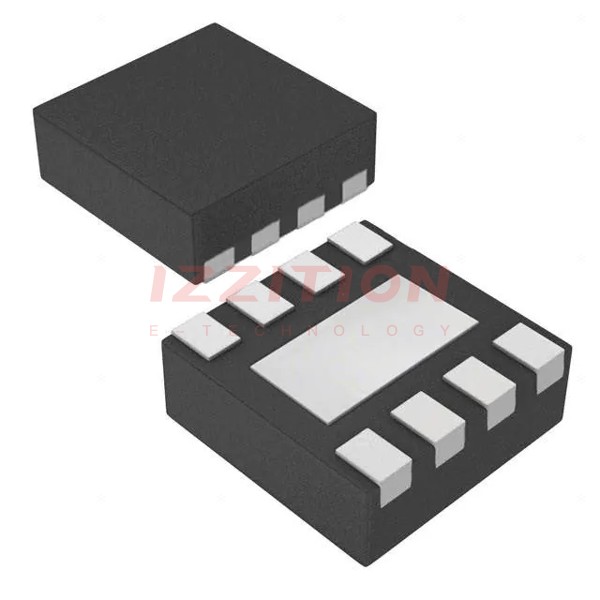

| Package | SON | - | 8-pin |
| Operating Temperature | -40 to 125 | °C | - |
Key Features
- High ESD Protection: Provides ±8 kV ESD protection, ensuring robust defense against electrostatic discharge events.
- Low Capacitance: With a typical capacitance of 0.5 pF per channel, it minimizes signal distortion in high-speed data lines.
- Compact Design: The 8-pin SON package offers a space-saving solution for modern electronic designs.
- Wide Operating Temperature Range: Supports operation from -40°C to 125°C, making it suitable for harsh environments.
Applications
The TPD8E003DQDR is widely used in various industries, including:
- Consumer Electronics: Protects USB ports, HDMI interfaces, and other high-speed data lines in smartphones, tablets, and laptops.
- Automotive Electronics: Safeguards communication interfaces and sensors in automotive systems, ensuring reliability in challenging conditions.
- Industrial Automation: Provides ESD protection for control systems and communication modules in industrial environments.
Q & A
1. What is the ESD protection level of the TPD8E003DQDR?
The TPD8E003DQDR provides ±8 kV ESD protection, compliant with the IEC 61000-4-2 standard.
2. What is the typical capacitance of this device?
The typical capacitance is 0.5 pF per channel.
3. How many channels does the TPD8E003DQDR have?
It has 8 channels for ESD protection.
4. What is the operating voltage range?
The operating voltage is up to 5 V.
5. What package does the TPD8E003DQDR come in?
It is available in an 8-pin SON package.
6. Is the TPD8E003DQDR suitable for automotive applications?
Yes, it is designed to operate in harsh environments, making it suitable for automotive electronics.
7. What is the operating temperature range?
The device operates from -40°C to 125°C.
8. Can this device be used for USB port protection?
Yes, it is ideal for protecting USB ports and other high-speed data lines.
9. Does the TPD8E003DQDR support high-speed data lines?
Yes, its low capacitance makes it suitable for high-speed data lines with minimal signal distortion.
10. Where can I find the official datasheet for the TPD8E003DQDR?
The official datasheet is available on the Texas Instruments website.
