Overview
The TPD2E2U06DRLR is a Transient Voltage Suppression (TVS) diode manufactured by Texas Instruments. It is designed for circuit protection applications, particularly in environments where safeguarding sensitive electronic components from voltage spikes is critical. This product is categorized under TVS diodes and is widely used in Ethernet applications due to its robust protection capabilities. Its market positioning targets industries requiring reliable power line protection, such as industrial automation, telecommunications, and consumer electronics. The TPD2E2U06DRLR stands out for its low capacitance, high surge current handling, and compact SOT-553 package, making it a competitive choice for space-constrained designs.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Type | Unidirectional | - | Rail-to-Rail |
| Channels | 2 | - | - |
| Reverse Standoff Voltage | 5.5 | V | Max |
| Breakdown Voltage | 6.5 | V | Min |
| Clamping Voltage | 12.4 | V | Standard |
| Peak Pulse Current | 5.5 | A | 8/20μs |
| Peak Pulse Power | 85 | W | - |
| Capacitance | Low | - | Frequency-dependent |
| Operating Temperature | -40 to 125 | °C | - |

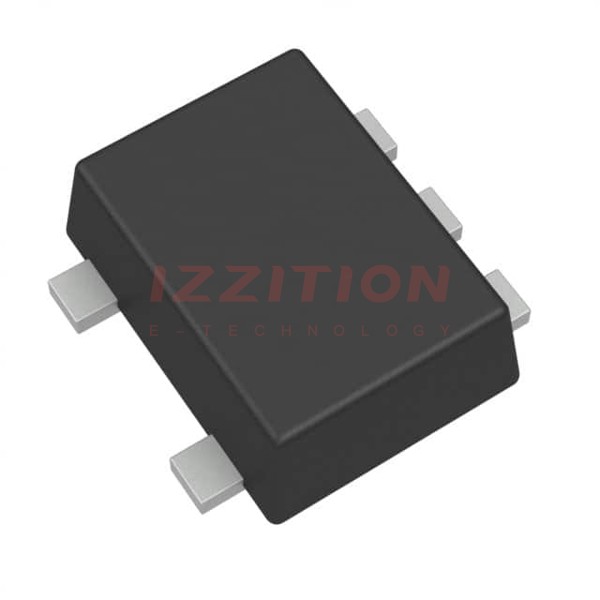

| Package | SOT-553 | - | Surface Mount |
Key Features
- Robust protection against voltage transients and surges.
- Low capacitance ensures minimal signal distortion in high-speed applications.
- Compact SOT-553 package ideal for space-constrained designs.
- High surge current handling capability (5.5A).
- Wide operating temperature range (-40°C to 125°C).
Applications
The TPD2E2U06DRLR is widely used in Ethernet applications, where it provides essential protection against voltage spikes and surges. It is also suitable for industrial automation systems, telecommunications equipment, and consumer electronics, where reliable circuit protection is critical. Its low capacitance makes it ideal for high-speed data lines, ensuring signal integrity while safeguarding sensitive components.
Q & A
1. What is the primary function of the TPD2E2U06DRLR?
The TPD2E2U06DRLR is designed to protect sensitive electronic components from voltage transients and surges.
2. What is the maximum reverse standoff voltage?
The maximum reverse standoff voltage is 5.5V.
3. What is the breakdown voltage of this diode?
The breakdown voltage is 6.5V (minimum).
4. What is the peak pulse current handling capability?
It can handle up to 5.5A of peak pulse current (8/20μs).
5. What is the operating temperature range?
The operating temperature range is -40°C to 125°C.
6. What package does the TPD2E2U06DRLR use?
It uses a compact SOT-553 surface-mount package.
7. Is this diode suitable for Ethernet applications?
Yes, it is widely used in Ethernet applications for circuit protection.
8. What is the clamping voltage of this diode?
The clamping voltage is 12.4V (standard).
9. Does it have low capacitance?
Yes, it features low capacitance, making it suitable for high-speed data lines.
10. Is the TPD2E2U06DRLR unidirectional or bidirectional?
It is a unidirectional TVS diode.
