Overview

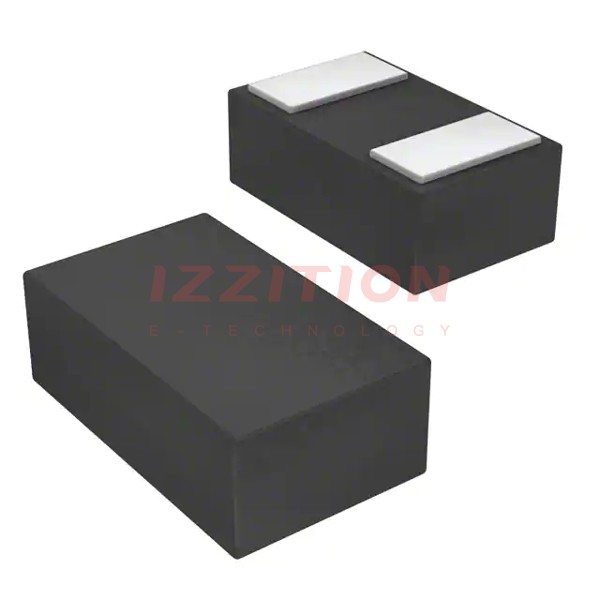

The TPD1E10B06QDPYRQ1 is a high-performance ESD (Electrostatic Discharge) protection device designed and manufactured by Texas Instruments. This component is specifically engineered to safeguard sensitive electronic circuits from ESD events, ensuring reliability and longevity in various applications. With its compact X1SON-2 package and automotive-grade certification, the TPD1E10B06QDPYRQ1 is ideal for use in automotive electronics, consumer electronics, and industrial systems. Its bidirectional protection, low clamping voltage, and high peak pulse current handling make it a robust solution for ESD protection.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Breakdown Voltage (Min) | 6 | V | |
| Clamping Voltage | 14 | V | |
| Peak Pulse Current (Ipp) | 5 | A | |
| Reverse Standoff Voltage | 5.5 | V | |
| Operating Temperature | -40 to +125 | °C | |
| Package | X1SON-2 | 1.00 x 0.60 mm | |
| Polarity | Bidirectional | ||
| Certification | RoHS, Automotive | ||
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | ||
| Storage Temperature | -65 to +155 | °C |
Key Features
- Bidirectional ESD protection for versatile circuit protection.
- Low clamping voltage ensures minimal stress on protected circuits.
- High peak pulse current handling capability of 5A.
- Compact X1SON-2 package for space-constrained designs.
- Automotive-grade certification for reliable performance in harsh environments.
Applications
The TPD1E10B06QDPYRQ1 is widely used in automotive electronics, including infotainment systems, advanced driver-assistance systems (ADAS), and power management modules. It is also suitable for consumer electronics such as smartphones, tablets, and wearables, where ESD protection is critical. Additionally, its robust design makes it ideal for industrial applications like automation systems and IoT devices.
Q & A
1. What is the purpose of the TPD1E10B06QDPYRQ1?
The TPD1E10B06QDPYRQ1 is designed to protect sensitive electronic circuits from electrostatic discharge (ESD) events.
2. What is the breakdown voltage of this component?
The minimum breakdown voltage is 6V.
3. What is the clamping voltage of the TPD1E10B06QDPYRQ1?
The clamping voltage is 14V.
4. Can this component handle high peak pulse currents?
Yes, it can handle peak pulse currents up to 5A.
5. What is the operating temperature range?
The operating temperature range is -40°C to +125°C.
6. Is the TPD1E10B06QDPYRQ1 suitable for automotive applications?
Yes, it is automotive-grade certified.
7. What package does this component use?
It uses the compact X1SON-2 package.
8. Is the TPD1E10B06QDPYRQ1 bidirectional?
Yes, it provides bidirectional ESD protection.
9. What is the moisture sensitivity level (MSL) of this component?
The MSL is 1, meaning it has unlimited floor life.
10. What are the typical applications of this component?
Typical applications include automotive electronics, consumer electronics, and industrial systems.
