Overview
The TMS320VC5507ZAY is a fixed-point digital signal processor (DSP) manufactured by Texas Instruments. This device is part of the TMS320C55x DSP family and is designed to provide high performance and low power consumption, making it suitable for a variety of applications in audio, industrial, and medical fields. The TMS320VC5507ZAY features advanced peripherals and a robust instruction set, enabling efficient processing of digital signals.
Key Specifications
| Specification | Value |
|---|---|
| Processor Type | Fixed-Point Digital Signal Processor |
| Core | TMS320C55x |
| Clock Speed | Up to 300 MHz |

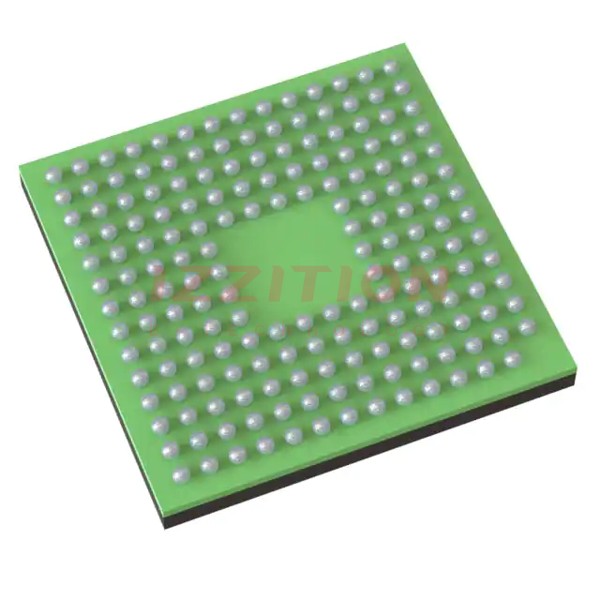

| Package Type | MicroStar BGA (Ball Grid Array) |
| Memory | 320 KB of On-Chip RAM, 64 KB of On-Chip ROM |
| Peripherals | Multichannel Buffered Serial Port (McBSP), Universal Serial Bus (USB), Inter-Integrated Circuit (I2C), Analog-to-Digital Converter (ADC), External Memory Interface (EMIF) |
| Boot Modes | EHPI, EMIF, Direct Execution from External Memory, Serial Port, SPI EEPROM, I2C, USB |
| Power Supply | 1.0V to 1.4V Core Voltage, 3.3V I/O Voltage |
| Operating Temperature | -40°C to 85°C |
Key Features
- High-performance fixed-point DSP with a clock speed of up to 300 MHz.
- Advanced peripherals including McBSP, USB, I2C, ADC, and EMIF.
- Multiple boot modes for flexible system initialization.
- Low power consumption with various idle and standby modes.
- On-chip bootloader and JTAG emulation interface for debugging and testing.
- Support for high-density BGA packaging.
Applications
- Audio processing and compression.
- Industrial control and automation.
- Medical devices such as patient monitoring systems and diagnostic equipment.
- Consumer electronics like digital cameras and audio players.
- Automotive systems, including infotainment and safety features.
Q & A
- What is the TMS320VC5507ZAY used for? The TMS320VC5507ZAY is a fixed-point digital signal processor used in various applications such as audio processing, industrial control, medical devices, and consumer electronics.
- What are the key peripherals of the TMS320VC5507ZAY? The key peripherals include McBSP, USB, I2C, ADC, and EMIF.
- What are the boot modes supported by the TMS320VC5507ZAY? The device supports EHPI, EMIF, direct execution from external memory, serial port, SPI EEPROM, I2C, and USB boot modes.
- How does the TMS320VC5507ZAY manage power consumption? The device has various idle and standby modes to reduce power consumption.
- What is the significance of the JTAG interface on the TMS320VC5507ZAY? The JTAG interface allows for emulation and debugging, as well as boundary scan testability.
- What are the package options for the TMS320VC5507ZAY? The device is available in MicroStar BGA packaging.
- What is the operating temperature range of the TMS320VC5507ZAY? The operating temperature range is -40°C to 85°C.
- How much on-chip memory does the TMS320VC5507ZAY have? The device has 320 KB of on-chip RAM and 64 KB of on-chip ROM.
- What are the power supply requirements for the TMS320VC5507ZAY? The core voltage is 1.0V to 1.4V, and the I/O voltage is 3.3V.
- What are some common applications of the TMS320VC5507ZAY in the medical field? Common applications include patient monitoring systems and diagnostic equipment.
