Overview
The TMS320VC5410AGGU16 is a fixed-point digital signal processor (DSP) developed by Texas Instruments. This processor is based on an advanced modified Harvard architecture, featuring one program memory bus and three data memory buses. This architecture allows for simultaneous access to program instructions and data, enabling high parallelism and efficient execution of instructions. The DSP includes a robust arithmetic logic unit (ALU) with a 40-bit barrel shifter and two independent 40-bit accumulators, supporting non-pipelined single-cycle multiply/accumulate (MAC) operations. The TMS320VC5410AGGU16 is designed to provide high operational flexibility and speed, making it suitable for a wide range of digital signal processing applications.
Key Specifications
| Specification | Value |
|---|---|

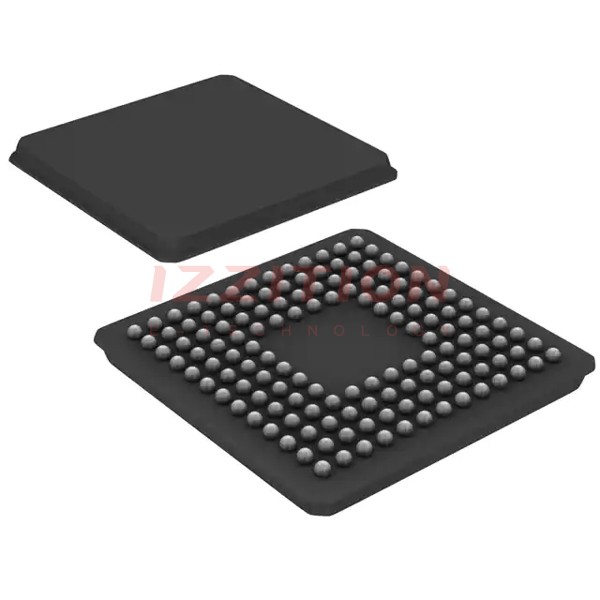

| Package Type | 144-Ball GGU MicroStar BGA™, 144-Pin PGE Low-Profile Quad Flatpack (LQFP) |
| Core Supply Voltage | 1.6 V (160 MIPS), 1.5 V (120 MIPS) |
| Memory | 128 KB Program Memory, 32 KB On-Chip RAM, 128 KB Extended Program Memory |
| ALU | 40-Bit Arithmetic Logic Unit with 40-Bit Barrel Shifter and Two Independent 40-Bit Accumulators |
| Multiplier | 17 × 17-Bit Parallel Multiplier Coupled to a 40-Bit Dedicated Adder |
| Host-Port Interface | 8/16-Bit Enhanced Parallel Host-Port Interface (HPI8/16) |
| Serial Ports | Three Multichannel Buffered Serial Ports (McBSPs) |
| Timer | One 16-Bit Timer |
| DMA Controller | Six-Channel Direct Memory Access (DMA) Controller |
| Clock Generator | Programmable Phase-Locked Loop (PLL) Clock Generator with Internal Oscillator or External Clock Source |
Key Features
- Advanced Multibus Architecture with three separate 16-bit data memory buses and one program memory bus.
- 40-Bit Arithmetic Logic Unit (ALU) including a 40-bit barrel shifter and two independent 40-bit accumulators.
- 17 × 17-Bit Parallel Multiplier coupled to a 40-bit dedicated adder for non-pipelined single-cycle multiply/accumulate (MAC) operations.
- On-chip peripherals including software-programmable wait-state generator, programmable bank-switching, bus holders, and enhanced 8-/16-bit host-port interface (HPI8/16).
- Three multichannel buffered serial ports (McBSPs) and one 16-bit timer.
- Six-channel direct memory access (DMA) controller and power consumption control with IDLE1, IDLE2, and IDLE3 instructions.
- Extended addressing mode for 8M × 16-bit program and data management.
- IEEE Standard 1149.1-1990 Standard-Test-Access Port and Boundary Scan Architecture.
Applications
The TMS320VC5410AGGU16 is versatile and can be applied in various digital signal processing tasks, including:
- Audio and video processing.
- Telecommunications and wireless communication systems.
- Industrial control and automation.
- Medical imaging and diagnostic equipment.
- Consumer electronics such as set-top boxes and digital TVs.
Q & A
- What is the core supply voltage of the TMS320VC5410AGGU16?
The core supply voltage is 1.6 V (160 MIPS) and 1.5 V (120 MIPS).
- What types of packages are available for the TMS320VC5410AGGU16?
The processor is available in 144-Ball GGU MicroStar BGA™ and 144-Pin PGE Low-Profile Quad Flatpack (LQFP) packages.
- What is the memory configuration of the TMS320VC5410AGGU16?
The processor features 128 KB program memory, 32 KB on-chip RAM, and 128 KB extended program memory.
- What are the key features of the ALU in the TMS320VC5410AGGU16?
The ALU includes a 40-bit arithmetic logic unit with a 40-bit barrel shifter and two independent 40-bit accumulators.
- Does the TMS320VC5410AGGU16 support any serial communication interfaces?
Yes, it supports three multichannel buffered serial ports (McBSPs).
- What is the purpose of the DMA controller in the TMS320VC5410AGGU16?
The six-channel direct memory access (DMA) controller manages data transfers between different memory spaces and peripherals.
- How does the TMS320VC5410AGGU16 manage power consumption?
The processor includes power consumption control with IDLE1, IDLE2, and IDLE3 instructions and power-down modes.
- What is the significance of the IEEE Standard 1149.1-1990 in the TMS320VC5410AGGU16?
The processor includes an IEEE Standard 1149.1-1990 Standard-Test-Access Port and Boundary Scan Architecture for testing and debugging purposes.
- In what types of applications is the TMS320VC5410AGGU16 commonly used?
The processor is commonly used in audio and video processing, telecommunications, industrial control, medical imaging, and consumer electronics.
- What development tools are available for the TMS320VC5410AGGU16?
The processor is supported by eXpressDSP™ Software and Development Tools, including Code Composer Studio™ IDE and DSP/BIOS™ kernel.
