Overview
The TMS320C6711GFN150 is a floating-point Digital Signal Processor (DSP) from Texas Instruments, part of the TMS320C6000 DSP platform. This device is based on the high-performance, advanced very-long-instruction-word (VLIW) architecture, making it an excellent choice for multichannel and multifunction applications. The C6711 series, including the C6711GFN150, offers operational flexibility similar to high-speed controllers and the numerical capability of array processors.
The TMS320C6711GFN150 is particularly suited for applications requiring high-performance DSP capabilities, such as telecommunications, audio and video processing, and other real-time signal processing tasks.
Key Specifications
| Specification | Value |
|---|---|
| Clock Rate | Up to 150 MHz |
| Instruction Cycle Time | 6.7 ns |
| Performance | Up to 900 MFLOPS |
| Core Voltage | 1.9 V |
| I/O Voltage | 3.3 V |

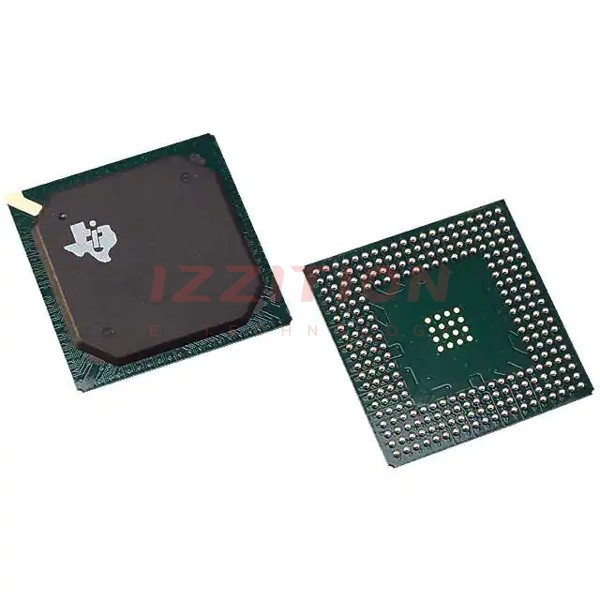

| Package Type | 256-Pin Ball Grid Array (BGA) |
| Process Technology | 0.18 µm CMOS |
| Cache | 32-Kbit L1 Program Cache, 32-Kbit L1 Data Cache, 64-Kbit Unified Mapped RAM/Cache (L2) |
| Functional Units | Eight highly independent functional units: four ALUs (floating- and fixed-point), two fixed-point ALUs, two floating-/fixed-point multipliers |
| Registers | 32 general-purpose registers of 32-bit word length |
| Peripherals | Two multichannel buffered serial ports (McBSPs), two general-purpose timers, host-port interface (HPI), glueless external memory interface (EMIF) |
Key Features
- Advanced VLIW Architecture: Supports eight 32-bit instructions per cycle, enhancing performance and efficiency.
- High-Performance Capabilities: Up to 900 million floating-point operations per second (MFLOPS) at a clock rate of 150 MHz.
- Cache and Memory: Includes a two-level cache-based architecture with 32-Kbit L1 program and data caches, and a 64-Kbit unified mapped RAM/cache (L2).
- Functional Units: Eight highly independent functional units, including four ALUs and two multipliers, supporting both floating- and fixed-point operations.
- Peripheral Set: Features two McBSPs, two general-purpose timers, an HPI, and an EMIF for interfacing with external memory and peripherals.
- Development Tools: Includes a C compiler, assembly optimizer, and Windows debugger interface for comprehensive development support.
Applications
- Telecommunications: Suitable for voice and data communication systems due to its high-performance DSP capabilities.
- Audio and Video Processing: Ideal for real-time audio and video processing applications, such as codecs and filters.
- Industrial Control Systems: Can be used in control systems that require real-time signal processing and high computational power.
- Medical Imaging and Diagnostics: Applicable in medical devices that need to process large amounts of data in real-time.
- Aerospace and Defense: Used in various military and aerospace applications requiring high-performance signal processing.
Q & A
- What is the clock rate of the TMS320C6711GFN150?
The clock rate of the TMS320C6711GFN150 is up to 150 MHz.
- What is the performance of the TMS320C6711GFN150 in terms of MFLOPS?
The TMS320C6711GFN150 can perform up to 900 MFLOPS at a clock rate of 150 MHz.
- What type of cache does the TMS320C6711GFN150 have?
The device features a two-level cache-based architecture with 32-Kbit L1 program and data caches, and a 64-Kbit unified mapped RAM/cache (L2).
- How many functional units does the TMS320C6711GFN150 have?
The TMS320C6711GFN150 has eight highly independent functional units, including four ALUs and two multipliers.
- What peripherals are included in the TMS320C6711GFN150?
The device includes two multichannel buffered serial ports (McBSPs), two general-purpose timers, a host-port interface (HPI), and a glueless external memory interface (EMIF).
- What is the package type of the TMS320C6711GFN150?
The TMS320C6711GFN150 is packaged in a 256-Pin Ball Grid Array (BGA)).
- What is the core voltage of the TMS320C6711GFN150?
The core voltage of the TMS320C6711GFN150 is 1.9 V).
- What development tools are available for the TMS320C6711GFN150?
The device has a complete set of development tools, including a C compiler, an assembly optimizer, and a Windows debugger interface).
- What are some common applications of the TMS320C6711GFN150?
Common applications include telecommunications, audio and video processing, industrial control systems, medical imaging, and aerospace and defense).
- What is the process technology used in the TMS320C6711GFN150?
The TMS320C6711GFN150 is manufactured using 0.18 µm CMOS technology).
