Overview
The SN74LV1T00DBVRG4 is a single 2-input positive-NAND gate IC manufactured by Texas Instruments. It is part of the 74LV series, designed for low-voltage applications. This component is widely used in digital logic circuits due to its compact size, low power consumption, and compatibility with a broad range of voltage levels. It is particularly suitable for portable electronics, IoT devices, and other applications where space and power efficiency are critical.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Pin Count | 5 | Pin | |
| Height | 1.10 | mm | |
| Dimensions (L x W) | 2.90 x 1.60 | mm | |
| Supply Voltage | 1.6 - 5.5 | V | |
| Static Current | 10 | µA | |
| High-Level Output Voltage | 940 - 2100 | mV | |
| Low-Level Output Voltage | 580 - 800 | mV | |
| Operating Temperature | -40 to +125 | °C | |
| Mounting Type | SMT | Surface Mount Technology | |

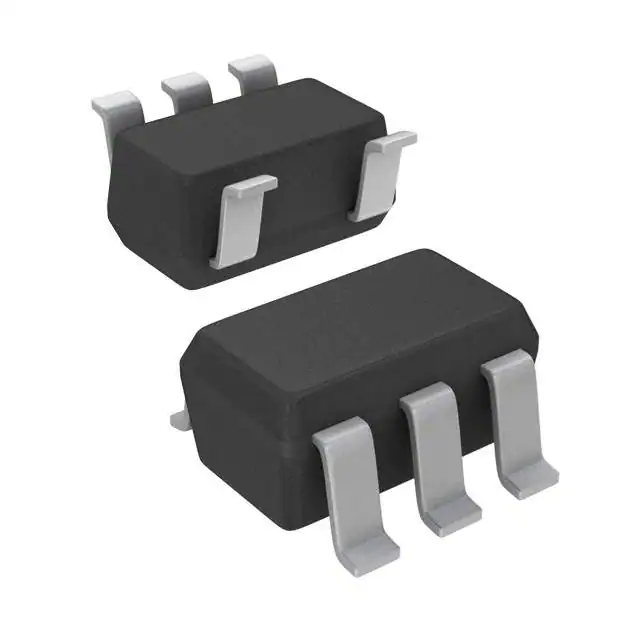

| Package | SOT23-5 |
Key Features
- Low-voltage operation (1.6V to 5.5V), ideal for battery-powered devices.
- Ultra-low static current of 10µA, ensuring minimal power consumption.
- Compact SOT23-5 package, suitable for space-constrained designs.
- Wide operating temperature range (-40°C to +125°C), enabling use in harsh environments.
- High noise immunity, ensuring reliable performance in noisy environments.
Applications
The SN74LV1T00DBVRG4 is commonly used in a variety of applications, including:
- Portable Electronics: Due to its low power consumption and small form factor, it is ideal for smartphones, tablets, and wearables.
- IoT Devices: Its compatibility with low-voltage systems makes it suitable for sensors and other IoT components.
- Automotive Electronics: The wide operating temperature range ensures reliable performance in automotive systems.
- Industrial Control Systems: Its high noise immunity makes it a good choice for industrial automation and control circuits.
Q & A
1. What is the operating voltage range of the SN74LV1T00DBVRG4?
The operating voltage range is 1.6V to 5.5V.
2. What is the package type of this IC?
It comes in a SOT23-5 package.
3. What is the typical static current consumption?
The typical static current is 10µA.
4. Can this IC operate in high-temperature environments?
Yes, it can operate in temperatures ranging from -40°C to +125°C.
5. Is this IC suitable for battery-powered devices?
Yes, its low power consumption makes it ideal for battery-powered applications.
6. What is the function of the SN74LV1T00DBVRG4?
It is a single 2-input positive-NAND gate.
7. What is the propagation delay of this IC?
The propagation delay is typically 5.5 ns.
8. Is this IC RoHS compliant?
Yes, it is RoHS compliant.
9. What is the output drive capability of this IC?
It has a high output drive capability of ±24 mA at 3.3V.
10. Can this IC be used in industrial automation systems?
Yes, its high noise immunity and wide temperature range make it suitable for industrial applications.
