Overview
The SN74LV1T04DBVRG4, produced by Texas Instruments, is a single power supply inverter gate belonging to the LVxT family of logic devices. This device is designed for low-voltage CMOS logic operations and supports a wide range of voltage levels, making it versatile for various applications. It features integrated voltage level translation, enabling it to handle inputs and outputs at different voltage levels such as 1.8V, 2.5V, 3.3V, and 5.0V. The device is particularly useful in scenarios requiring voltage translation, such as in telecom, portable applications, servers, and PC and notebook systems.
Key Specifications
| Parameter | Value | Unit | Conditions |
|---|---|---|---|
| Operating Temperature Range | –40°C to +125°C | °C | |
| Supply Voltage (VCC) | 1.8 V to 5.5 V | V | |
| Input Voltage Tolerance | Up to 5.5 V | V | |
| Propagation Delay Time (tpd) | 4 ns to 14 ns | ns | VCC = 1.8 V to 5.0 V, CL = 15 pF to 30 pF |
| Low-level Output Current (IOL) | 3 mA to 8 mA | mA | VCC = 1.8 V to 5.0 V |
| High-level Output Current (IOH) | –3 mA to –8 mA | mA | VCC = 1.8 V to 5.0 V |
| Input Transition Rise or Fall Rate | 20 ns/V | ns/V | VCC = 1.8 V to 5.0 V |

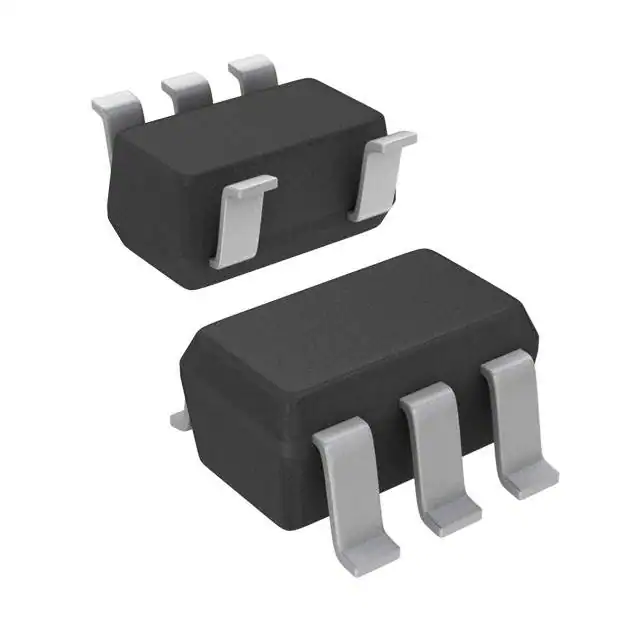

| Package Type | SOT-23 (DBV) | ||
| Package Size | 2.9mm × 2.8mm | mm | |
| Latch-up Performance | Exceeds 250 mA per JESD 17 | mA |
Key Features
- Integrated voltage level translation for up and down translation between different voltage levels (1.8V, 2.5V, 3.3V, 5.0V)
- 5V tolerant input pins for down translation
- Reduced input voltage thresholds for up-translation
- High impedance inputs
- Current-drive capability of 8 mA to reduce line reflections, overshoot, and undershoot
- Operating temperature range of –40°C to +125°C
- Pb-free packages available
- Supports standard logic pinouts and is compatible with AUP1G and LVC1G families
Applications
- Telecom systems
- Portable applications
- Servers
- PC and notebook systems
- Industrial and automotive applications requiring voltage level translation
Q & A
- What is the SN74LV1T04DBVRG4 used for?
The SN74LV1T04DBVRG4 is used as a single power supply inverter gate with integrated voltage level translation, suitable for various applications requiring voltage translation.
- What voltage levels does the SN74LV1T04 support?
The device supports voltage levels of 1.8V, 2.5V, 3.3V, and 5.0V.
- What is the operating temperature range of the SN74LV1T04?
The operating temperature range is –40°C to +125°C.
- What is the input voltage tolerance of the SN74LV1T04?
The input pins are tolerant of signals up to 5.5V.
- What is the propagation delay time of the SN74LV1T04?
The propagation delay time ranges from 4 ns to 14 ns depending on the supply voltage and load capacitance.
- What is the package type of the SN74LV1T04DBVRG4?
The package type is SOT-23 (DBV).
- What are the key applications of the SN74LV1T04?
The key applications include telecom systems, portable applications, servers, and PC and notebook systems.
- How does the SN74LV1T04 handle voltage level translation?
The device can perform both up and down voltage level translation between different voltage levels.
- What is the latch-up performance of the SN74LV1T04?
The latch-up performance exceeds 250 mA per JESD 17.
- Are the packages Pb-free?
