Overview

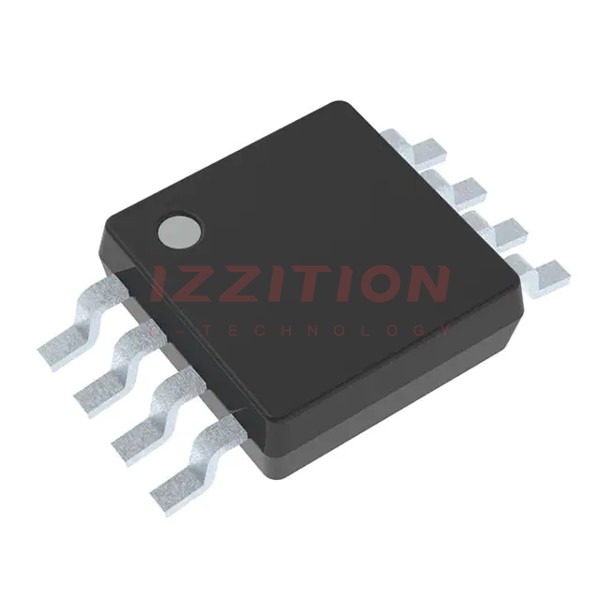

The SN74AUC2G08DCURG4 is a dual 2-input positive AND gate integrated circuit produced by Texas Instruments. This component is part of the AUC family, known for its low-voltage operation and low power consumption. It is packaged in an 8-pin VSSOP (Very Thin Small Outline Package) and is designed for use in a variety of digital logic applications.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | 8-VSSOP |
| Number of Channels | 2 |
| Logic Function | Dual 2-Input AND Gate |
| Operating Voltage | 0.8 V to 2.7 V |
| Operating Temperature | -40°C to 125°C |
| Input Type | CMOS |
| Output Type | CMOS |
| Propagation Delay | Typically 4.5 ns at 1.8 V |
| Power Consumption | Ultra-low power |
Key Features
- Low-voltage operation: Compatible with 0.8 V to 2.7 V supply voltage.
- Ultra-low power consumption: Suitable for battery-powered and power-sensitive applications.
- High-speed operation: Fast propagation delay of typically 4.5 ns at 1.8 V.
- CMOS input and output: Compatible with CMOS logic levels.
- Compact packaging: 8-pin VSSOP package for space-efficient designs.
Applications
The SN74AUC2G08DCURG4 is suitable for a wide range of digital logic applications, including:
- Portable electronics and battery-powered devices.
- Low-power consumer electronics.
- Automotive systems requiring low power and high reliability.
- Industrial control systems and automation.
- Communication devices and networking equipment.
Q & A
- What is the package type of the SN74AUC2G08DCURG4?
The package type is 8-VSSOP (Very Thin Small Outline Package). - What is the logic function of this IC?
The logic function is a dual 2-input positive AND gate. - What is the operating voltage range of this component?
The operating voltage range is from 0.8 V to 2.7 V. - What is the typical propagation delay at 1.8 V?
The typical propagation delay at 1.8 V is 4.5 ns. - Is this component suitable for high-temperature applications?
Yes, it operates from -40°C to 125°C. - What type of inputs and outputs does this IC have?
The inputs and outputs are CMOS. - Why is this component useful in battery-powered devices?
It is useful due to its ultra-low power consumption. - Can this component be used in automotive systems?
Yes, it is suitable for automotive systems requiring low power and high reliability. - Is the SN74AUC2G08DCURG4 still available for purchase?
No, it is discontinued and no longer carried by some distributors, but substitutes may be available. - Where can I find detailed specifications for this component?
Detailed specifications can be found in the datasheet available on Texas Instruments' website and other electronic component distributors.
