Overview

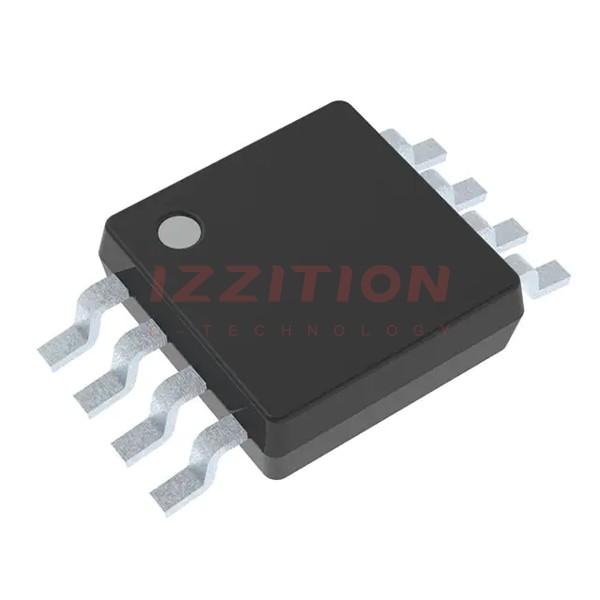

The SN74AUC2G08DCURE4 is a dual 2-input positive-AND gate integrated circuit produced by Texas Instruments. This ultra-high-speed logic gate operates within a voltage range of 0.8 V to 2.7 V, making it versatile for various low-power applications. The device is known for its low power consumption, with a typical current draw of 10 µA at 1.8 V, and it features a high output drive capability of ±8 mA at 1.8 V.
Key Specifications
| Parameter | Min | Max | Unit |
|---|---|---|---|
| Supply Voltage Range (VCC) | 0.8 | 2.7 | V |
| Input Voltage Range (VI) | –0.5 | 3.6 | V |
| Output Voltage Range (VO) | –0.5 | VCC + 0.5 | V |
| High-Level Input Voltage (VIH) | 0.65 × VCC (1.1 V to 1.95 V) | 1.7 (2.3 V to 2.7 V) | V |
| Low-Level Input Voltage (VIL) | 0.35 × VCC (1.1 V to 1.95 V) | 0.7 (2.3 V to 2.7 V) | V |
| Continuous Output Current (IO) | ±20 | mA | |
| Continuous Current through VCC or GND | ±100 | mA | |
| Storage Temperature Range (Tstg) | –65 | 150 | °C |
| Operating Temperature Range | –40 | 85 | °C |
| Package Thermal Impedance (θJA) | 220 (DCT package) | 227 (DCU package), 102 (YZP package) | °C/W |
Key Features
- Ultra-high-speed operation with a propagation delay of 2.4 ns.
- Low power consumption: 10 µA at 1.8 V.
- High output drive capability: ±8 mA at 1.8 V.
- Wide operating voltage range: 0.8 V to 2.7 V.
- Available in various packages including DCT, DCU, and YZP.
- RoHS compliant and free from Sb/Br.
Applications
The SN74AUC2G08DCURE4 is suitable for a variety of applications requiring low-power, high-speed logic operations. These include:
- Mobile and portable electronics where power efficiency is crucial.
- Embedded systems and IoT devices that require low power consumption.
- High-speed data processing and communication systems.
- Automotive and industrial control systems where reliability and low power are essential.
Q & A
- What is the operating voltage range of the SN74AUC2G08DCURE4?
The operating voltage range is from 0.8 V to 2.7 V.
- What is the typical power consumption of the SN74AUC2G08DCURE4 at 1.8 V?
The typical power consumption is 10 µA at 1.8 V.
- What is the propagation delay of the SN74AUC2G08DCURE4?
The propagation delay is 2.4 ns.
- What are the available packages for the SN74AUC2G08DCURE4?
The device is available in DCT, DCU, and YZP packages.
- Is the SN74AUC2G08DCURE4 RoHS compliant?
- What is the maximum continuous output current of the SN74AUC2G08DCURE4?
The maximum continuous output current is ±20 mA.
- What is the storage temperature range for the SN74AUC2G08DCURE4?
The storage temperature range is from –65°C to 150°C.
- What is the operating temperature range for the SN74AUC2G08DCURE4?
The operating temperature range is from –40°C to 85°C.
- What is the package thermal impedance for the different packages of the SN74AUC2G08DCURE4?
The package thermal impedance is 220°C/W for the DCT package, 227°C/W for the DCU package, and 102°C/W for the YZP package.
- What are some typical applications for the SN74AUC2G08DCURE4?
Typical applications include mobile and portable electronics, embedded systems, high-speed data processing systems, and automotive and industrial control systems.
