Overview

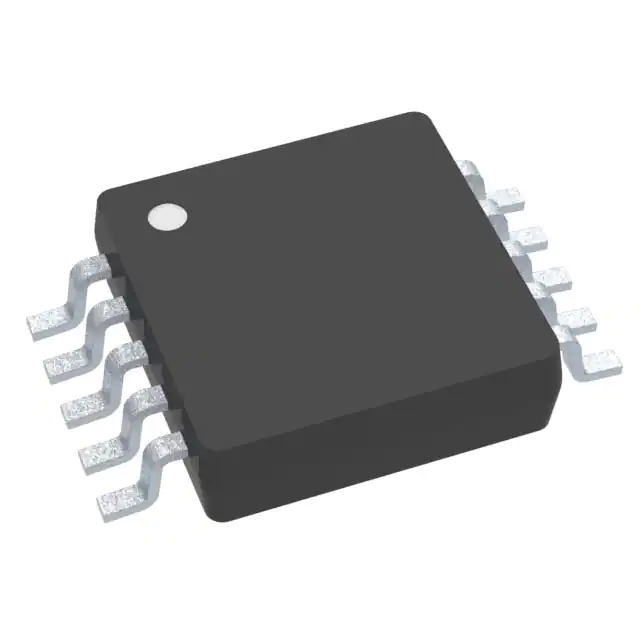

The LM4811MMX/NOPB is a high-performance audio amplifier produced by Texas Instruments. This model is designed for use in portable electronic devices, offering a compact and efficient solution for audio amplification. It is particularly well-suited for applications requiring low power consumption and high-quality sound output. The LM4811MMX/NOPB is a stereo headphone amplifier that delivers 105mW per channel into 16Ω loads, making it ideal for consumer electronics such as smartphones, tablets, and portable media players.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Output Power | 105 | mW | Per channel into 16Ω |
| Supply Voltage | 2.7 to 5.5 | V | |
| Operating Temperature | -40 to 85 | °C | |
| Package | 10-VSSOP | ||
| Output Type | Stereo | ||
| Amplifier Class | Class-AB |
Key Features
- Compact 10-VSSOP package for space-constrained applications.
- Low power consumption, ideal for battery-powered devices.
- High-quality audio output with minimal distortion.
- Wide supply voltage range for versatile application.
Applications
The LM4811MMX/NOPB is widely used in consumer electronics, particularly in devices where space and power efficiency are critical. It is commonly found in smartphones, tablets, portable media players, and other handheld devices. Its high-quality audio output and low power consumption make it a popular choice for enhancing the audio experience in portable electronics.
Q & A
What is the output power of the LM4811MMX/NOPB?
The LM4811MMX/NOPB delivers 105mW per channel into 16Ω loads.
What is the supply voltage range for this amplifier?
The supply voltage ranges from 2.7V to 5.5V.
What is the operating temperature range?
The operating temperature range is -40°C to 85°C.
What type of package does the LM4811MMX/NOPB use?
It uses a 10-VSSOP package.
Is the LM4811MMX/NOPB suitable for battery-powered devices?
Yes, its low power consumption makes it ideal for battery-powered devices.
What type of amplifier is the LM4811MMX/NOPB?
It is a Class-AB audio amplifier.
Can the LM4811MMX/NOPB be used in stereo applications?
Yes, it is a stereo headphone amplifier.
What are the typical applications of the LM4811MMX/NOPB?
It is commonly used in smartphones, tablets, and portable media players.
Does the LM4811MMX/NOPB support high-quality audio output?
Yes, it provides high-quality audio output with minimal distortion.
Is the LM4811MMX/NOPB available in a compact package?
Yes, it is available in a compact 10-VSSOP package.
