Overview

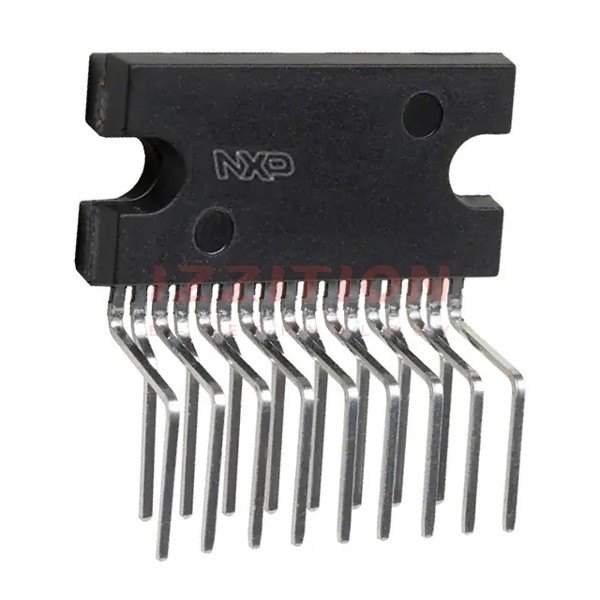

The TDA8566Q/N2S,112 is a high-performance audio power amplifier IC produced by NXP Semiconductors. This device is designed for automotive applications, offering a robust and reliable solution for car audio systems. It features a Bridge-Tied Load (BTL) configuration, which enhances the output power and efficiency of the amplifier. The TDA8566Q/N2S,112 is packaged in a 17-pin DIL-bent-SIL (DBS17) package, making it suitable for various automotive audio installations.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer Part Number | TDA8566Q/N2S,112 |
| Manufacturer | NXP Semiconductors / Freescale |
| Package / Case | 17-SIP Formed Leads (DBS17) |
| Voltage - Supply | 6 V ~ 18 V |
| Type | Class B |
| Output Type | 2-Channel (Stereo) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Max Output Power x Channels @ Load | 55W x 2 @ 2 Ohm |
Key Features
- Depopulation circuitry to reduce noise
- Differential inputs for improved signal integrity
- Mute function for silent operation during power-on and power-off
- Short-circuit and thermal protection for enhanced reliability
- Standby mode to reduce power consumption when not in use
Applications
The TDA8566Q/N2S,112 is primarily designed for automotive audio systems, including car radios and other in-vehicle entertainment systems. Its robust design and high output power make it suitable for a variety of automotive audio applications where reliability and performance are critical.
Q & A
- What is the maximum output power of the TDA8566Q/N2S,112? The maximum output power is 55W x 2 @ 2 Ohm.
- What is the operating voltage range of the TDA8566Q/N2S,112? The operating voltage range is 6 V ~ 18 V.
- What type of amplifier is the TDA8566Q/N2S,112? It is a Class B amplifier.
- What is the package type of the TDA8566Q/N2S,112? It is packaged in a 17-SIP Formed Leads (DBS17) package.
- What are the key protection features of the TDA8566Q/N2S,112? It includes short-circuit and thermal protection.
- What is the operating temperature range of the TDA8566Q/N2S,112? The operating temperature range is -40°C ~ 85°C (TA).
- Is the TDA8566Q/N2S,112 RoHS compliant? Yes, it is lead-free and RoHS compliant.
- What is the mounting type of the TDA8566Q/N2S,112? It is a through-hole mount.
- Does the TDA8566Q/N2S,112 have a mute function? Yes, it includes a mute function.
- What is the moisture sensitivity level (MSL) of the TDA8566Q/N2S,112? The MSL is 1 (Unlimited).
