Overview

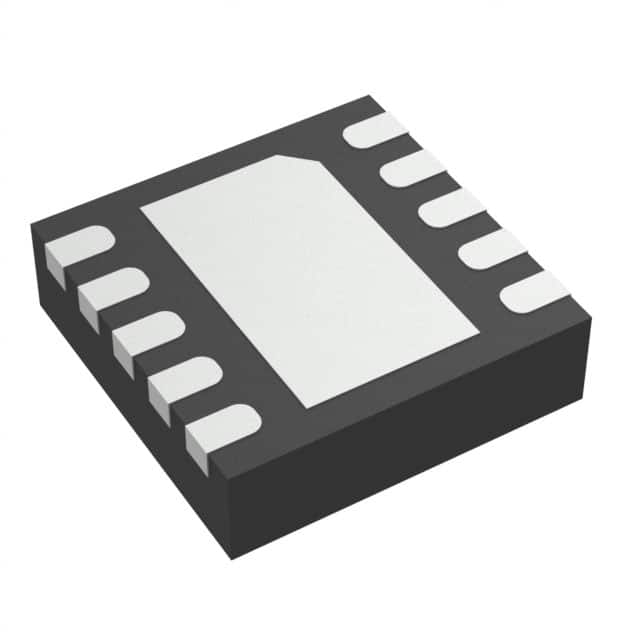

The INA592IDRCR is a precision instrumentation amplifier manufactured by Texas Instruments. Designed for high-accuracy signal conditioning, this product is part of Texas Instruments' portfolio of analog components, targeting applications that require precise amplification of low-level signals. The INA592IDRCR is particularly suited for industrial, medical, and test and measurement applications due to its high common-mode rejection ratio (CMRR), low noise, and wide supply voltage range. Its compact VSON package makes it ideal for space-constrained designs, offering a competitive edge in performance and reliability.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage Range | ±2.25 to ±18 | V | Dual supply |
| Input Offset Voltage | ±50 | µV | Max |
| Common-Mode Rejection Ratio (CMRR) | 114 | dB | Min |
| Gain Bandwidth Product | 1.2 | MHz | Typical |
| Input Bias Current | ±0.2 | nA | Max |
| Operating Temperature Range | -40 to +125 | °C | |
| Package | VSON-10 | Compact package | |
| Noise Voltage Density | 11 | nV/√Hz | Typical at 1 kHz |
Key Features
- High CMRR: Ensures accurate signal amplification in noisy environments.
- Low Noise: Ideal for precision applications requiring minimal signal distortion.
- Wide Supply Voltage Range: Supports flexible power supply configurations.
- Compact Package: VSON-10 package saves space in PCB designs.
- Low Input Bias Current: Minimizes errors in high-impedance signal sources.
Applications
The INA592IDRCR is widely used in applications requiring precise signal amplification and conditioning. Key application areas include:
- Industrial Automation: Signal conditioning for sensors and transducers.
- Medical Devices: Amplification of bioelectric signals in patient monitoring systems.
- Test and Measurement: High-accuracy signal acquisition in test equipment.
- Audio Equipment: Low-noise amplification in professional audio systems.
Q & A
1. What is the supply voltage range of the INA592IDRCR?
The INA592IDRCR operates with a supply voltage range of ±2.25 V to ±18 V.
2. What is the typical noise voltage density of the INA592IDRCR?
The typical noise voltage density is 11 nV/√Hz at 1 kHz.
3. What package does the INA592IDRCR come in?
It is available in a compact VSON-10 package.
4. What is the input offset voltage of the INA592IDRCR?
The maximum input offset voltage is ±50 µV.
5. What is the CMRR of the INA592IDRCR?
The minimum CMRR is 114 dB.
6. What is the operating temperature range of the INA592IDRCR?
It operates within a temperature range of -40 °C to +125 °C.
7. Is the INA592IDRCR suitable for medical applications?
Yes, it is ideal for medical devices such as patient monitoring systems.
8. What is the gain bandwidth product of the INA592IDRCR?
The typical gain bandwidth product is 1.2 MHz.
9. What is the input bias current of the INA592IDRCR?
The maximum input bias current is ±0.2 nA.
10. Can the INA592IDRCR be used in industrial automation?
Yes, it is well-suited for signal conditioning in industrial automation systems.
