Overview

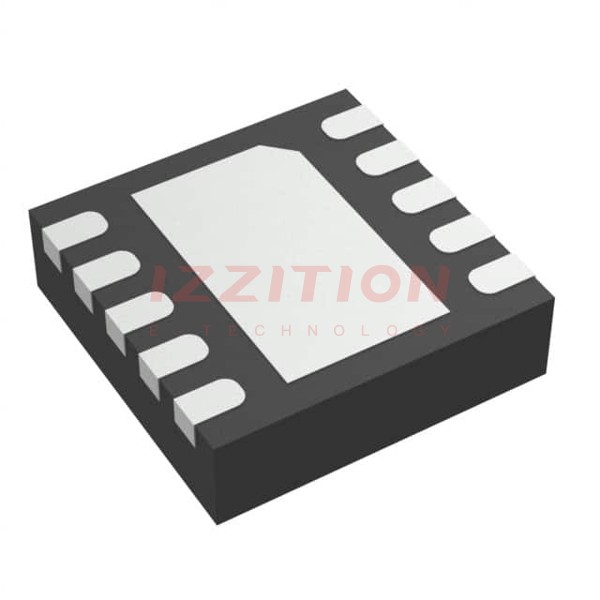

The INA592IDRCT is a high-precision, wide-bandwidth differential amplifier produced by Texas Instruments. This electronic component is designed for applications requiring robust performance in industrial environments. It features low offset voltage, low noise, and high common-mode rejection, making it suitable for precision measurement and control systems. The INA592IDRCT is packaged in a compact 8-pin MSOP or SOIC format, targeting engineers and designers in the industrial automation, semiconductor testing, and power management sectors.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Gain | 1/2, 2 | - | Selectable |
| Offset Voltage | 40 | μV | Max |
| Offset Voltage Drift | ±2 | μV/°C | Max |
| Noise | 18 | nV/√Hz | At 1kHz |
| Gain Error | ±0.03 | % | Max |
| Common-Mode Rejection | 88 | dB | Min |
| Bandwidth | 2 | MHz | GBW |
| Quiescent Current | 1.1 | mA | Per Amplifier |
| Slew Rate | 18 | V/μs | - |
| Capacitive Load Drive | 500 | pF | - |
| Supply Voltage Range | 4.5 to 36 (Single), ±2.25 to ±18 (Dual) | V | - |
| Temperature Range | -40 to +125 | °C | - |
Key Features
- Low offset voltage and drift ensure high precision in measurements.
- High common-mode rejection ratio (CMRR) enhances signal integrity in noisy environments.
- Wide bandwidth and high slew rate support fast signal processing.
- Robust capacitive load drive capability for stable operation with complex loads.
- Wide supply voltage range enables flexibility in various applications.
Applications
The INA592IDRCT is widely used in industrial automation, semiconductor testing, and power management systems. Its precision and robustness make it ideal for AC drive position feedback, servo drive position feedback, and state monitoring modules. Additionally, it is employed in power modules and other high-performance differential amplification applications.
Q & A
What is the gain range of the INA592IDRCT?
The INA592IDRCT offers selectable gains of 1/2 and 2.
What is the maximum offset voltage?
The maximum offset voltage is 40 μV.
What is the operating temperature range?
The operating temperature range is -40°C to +125°C.
What is the common-mode rejection ratio (CMRR)?
The CMRR is a minimum of 88 dB.
What is the bandwidth of the INA592IDRCT?
The bandwidth is 2 MHz GBW.
What is the quiescent current per amplifier?
The quiescent current is 1.1 mA per amplifier.
What is the slew rate?
The slew rate is 18 V/μs.
What is the capacitive load drive capability?
The capacitive load drive capability is 500 pF.
What are the supply voltage options?
The supply voltage range is 4.5V to 36V for single supply and ±2.25V to ±18V for dual supply.
What are the typical applications of the INA592IDRCT?
Typical applications include AC drive position feedback, servo drive position feedback, state monitoring modules, power modules, and semiconductor testing.
