Overview
The DAC101C081CIMKX/NOPB is a 10-bit, single-channel, voltage-output digital-to-analog converter (DAC) produced by Texas Instruments. This device operates from a 2.7 V to 5.5 V supply and features a rail-to-rail output amplifier with a settling time of 6 microseconds. It is designed for low power consumption, typically consuming 132 µA at 5.0 V, making it suitable for battery-operated equipment. The DAC101C081 is available in 6-lead SOT and WSON packages and supports three address options via pin selection, allowing multiple devices to be connected on the same 2-wire bus.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Resolution | 10 Bits | |
| Integral Non-Linearity (INL) | ±2 LSB (Maximum) | |
| Differential Non-Linearity (DNL) | +0.3/-0.2 LSB (Maximum) | |
| Setting Time | 6 µs (Maximum) | |
| Zero Code Error | +10 mV (Maximum) | |
| Full-Scale Error | −0.7 %FS (Maximum) | |
| Supply Power (Normal) | 380 µW (3 V) / 730 µW (5 V) Typical | |
| Supply Power (Power Down) | 0.5 µW (3 V) / 0.9 µW (5 V) Typical | |
| Operating Temperature Range | −40°C to +125°C | |

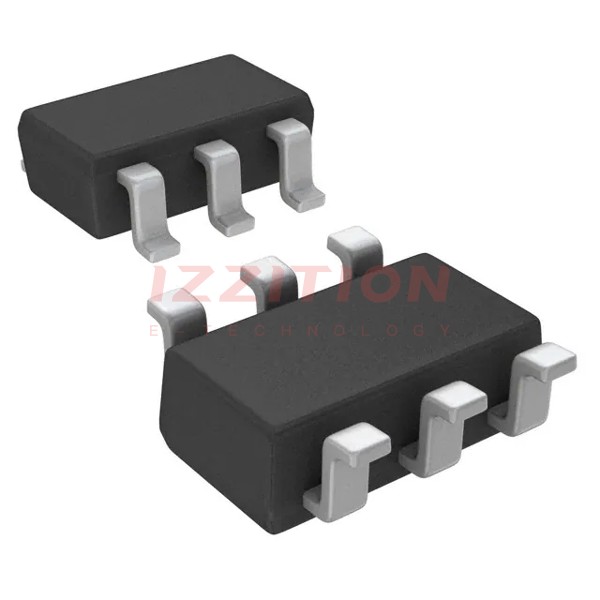

| Package | SOT-23-THN (DDC), 6 pins |
Key Features
- Ensured Monotonicity to 10 bits
- Low Power Operation: 156 µA maximum at 3.3 V
- Extended Power Supply Range (2.7 V to 5.5 V)
- I2C-Compatible 2-Wire Interface supporting Standard (100 kHz), Fast (400 kHz), and High-Speed (3.4 MHz) modes
- Rail-to-Rail Voltage Output
- Very Small Package (SOT-23-THN and WSON)
- DAC101C081Q is AEC Q100 Grade 1 Qualified and Manufactured on Automotive Grade Flow
- Power-on Reset Circuit ensuring DAC output powers up to zero volts
- Power-Down Feature reducing power consumption to less than a microWatt
Applications
- Industrial Process Control
- Portable Instruments
- Digital Gain and Offset Adjustment
- Programmable Voltage and Current Sources
- Test Equipment
- Automotive Systems
Q & A
- What is the resolution of the DAC101C081?
The DAC101C081 has a resolution of 10 bits.
- What is the operating temperature range of the DAC101C081?
The operating temperature range is −40°C to +125°C.
- What types of packages are available for the DAC101C081?
The DAC101C081 is available in 6-lead SOT and WSON packages.
- What is the maximum power consumption of the DAC101C081 at 5.0 V?
The maximum power consumption is typically 730 µW at 5.0 V.
- Does the DAC101C081 support multiple addressing options?
- What is the settling time of the DAC101C081?
The settling time is 6 microseconds (maximum).
- Is the DAC101C081 suitable for automotive applications?
- What are the power-down modes of the DAC101C081?
The DAC101C081 has a power-down feature that reduces power consumption to less than a microWatt.
- What is the maximum current output of the DAC101C081?
The maximum continuous output current available on the DAC output is 11 mA.
- Does the DAC101C081 support high-speed I2C interface?
