Overview

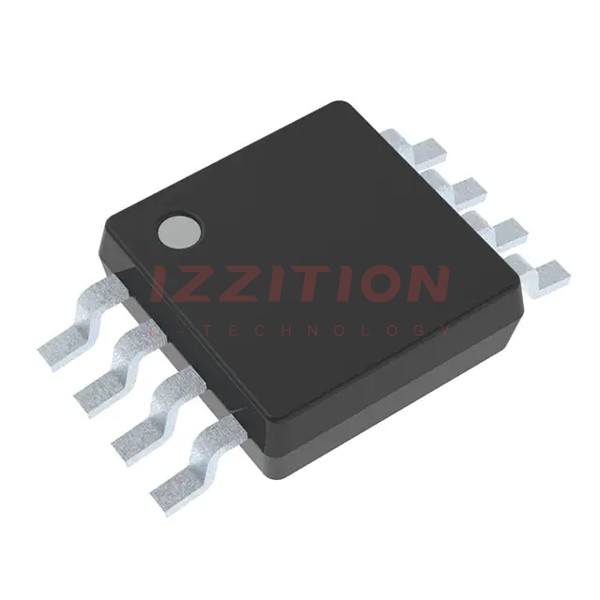

The CAVC2T45TDCURQ1 is a high-performance, automotive-grade dual-channel bidirectional voltage-level translator produced by Texas Instruments. Designed specifically for automotive applications, this component ensures reliable signal translation between devices operating at different voltage levels. It is part of Texas Instruments' automotive-qualified product line, meeting stringent industry standards for quality and reliability. The CAVC2T45TDCURQ1 is ideal for use in advanced driver-assistance systems (ADAS), infotainment systems, and other automotive electronics where robust performance and durability are critical.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Number of Channels | 2 | - | Dual-channel |
| Voltage Range (VA) | 1.2 to 5.5 | V | Side A |
| Voltage Range (VB) | 1.2 to 5.5 | V | Side B |
| Data Rate | Up to 100 | Mbps | High-speed operation |
| Operating Temperature | -40 to 125 | °C | Automotive-grade |
| Package | UQFN | - | Compact form factor |
| Automotive Qualification | AEC-Q100 | - | Grade 1 |
| ESD Protection | ±8 | kV | HBM |
Key Features
- Bidirectional voltage-level translation between two independent voltage domains.
- Supports high-speed data rates up to 100 Mbps, making it suitable for fast communication protocols.
- Robust ESD protection of ±8 kV (HBM) ensures reliability in harsh automotive environments.
- Wide voltage range (1.2 V to 5.5 V) for compatibility with various logic levels.
- Compact UQFN package for space-constrained applications.
- Fully compliant with AEC-Q100 Grade 1 standards, ensuring automotive-grade reliability.
Applications
The CAVC2T45TDCURQ1 is widely used in automotive electronics, particularly in systems requiring reliable voltage-level translation. Key applications include:
- Advanced Driver-Assistance Systems (ADAS): Ensures seamless communication between sensors, processors, and control units operating at different voltage levels.
- Infotainment Systems: Facilitates signal translation between multimedia components and microcontrollers.
- Body Electronics: Used in lighting, power windows, and other control modules to enable interoperability between low-voltage and high-voltage components.
- Telematics: Supports communication modules in vehicle tracking and diagnostics systems.
Q & A
1. What is the primary function of the CAVC2T45TDCURQ1?
The CAVC2T45TDCURQ1 is a bidirectional voltage-level translator designed to enable communication between devices operating at different voltage levels.
2. What voltage ranges does this component support?
It supports voltage ranges from 1.2 V to 5.5 V on both sides (VA and VB).
3. Is this component suitable for automotive applications?
Yes, it is fully compliant with AEC-Q100 Grade 1 standards, making it ideal for automotive use.
4. What is the maximum data rate supported by this translator?
It supports data rates up to 100 Mbps.
5. Does the CAVC2T45TDCURQ1 provide ESD protection?
Yes, it offers robust ESD protection of ±8 kV (HBM).
6. What package does this component come in?
It is available in a compact UQFN package.
7. Can this translator be used in industrial applications?
While it is designed for automotive use, it can also be used in industrial applications requiring similar performance and reliability.
8. What is the operating temperature range of this component?
It operates reliably in temperatures ranging from -40°C to 125°C.
9. How many channels does the CAVC2T45TDCURQ1 have?
It features two independent bidirectional channels.
10. Where can I find detailed technical documentation for this component?
Detailed documentation is available on the official Texas Instruments website or through authorized distributors like Digi-Key, Mouser, and Arrow Electronics.
