Overview
The ADS1254E/2K5G4 is a high-precision, 24-bit analog-to-digital converter (ADC) manufactured by Texas Instruments. Designed for applications requiring exceptional accuracy and low noise, this ADC is ideal for industrial automation, medical instrumentation, and precision measurement systems. Its market positioning targets engineers and developers in industries where high-resolution data acquisition is critical. The ADS1254E/2K5G4 stands out for its low-power consumption, high linearity, and robust performance in challenging environments.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Resolution | 24 | bits | |
| Sampling Rate | 30 | kSPS | |
| Input Channels | 4 | Differential | |
| Supply Voltage | 5 | V | Single supply |
| Power Consumption | 38 | mW | Typical |
| Operating Temperature | -40 to +85 | °C | |

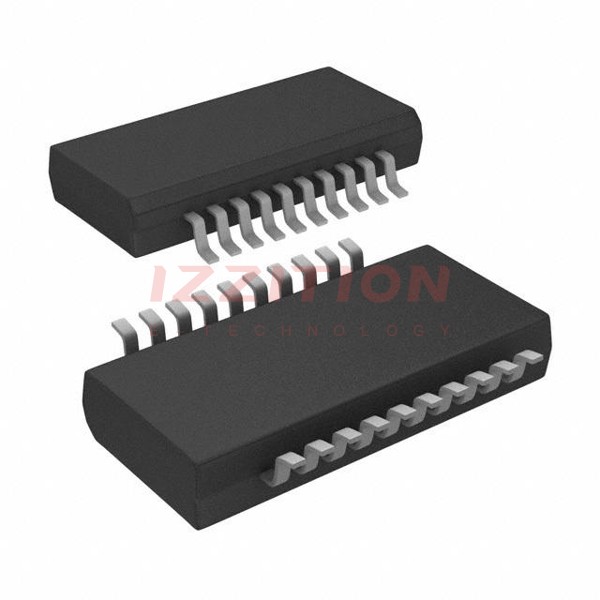

| Package | TSSOP-20 | ||
| Interface | SPI | ||
| INL | ±0.0015 | % of FSR | Full Scale Range |
| DNL | ±1 | LSB | Least Significant Bit |
Key Features
- High-resolution 24-bit ADC for precise measurements.
- Low noise and high linearity ensure accurate data acquisition.
- Low power consumption for energy-efficient designs.
- Four differential input channels for versatile signal processing.
- Robust performance in industrial temperature ranges.
- SPI interface for easy integration with microcontrollers.
Applications
The ADS1254E/2K5G4 is widely used in applications requiring high-precision analog-to-digital conversion. Key application areas include:
- Industrial Automation: Used in process control and monitoring systems for accurate sensor data acquisition.
- Medical Instrumentation: Ideal for patient monitoring and diagnostic equipment due to its high resolution and low noise.
- Precision Measurement: Suitable for scientific instruments and test equipment where accuracy is paramount.
- Energy Management: Employed in power monitoring systems for efficient energy usage analysis.
Q & A
1. What is the resolution of the ADS1254E/2K5G4?
The ADS1254E/2K5G4 offers a 24-bit resolution, providing high precision for data acquisition.
2. What is the maximum sampling rate of this ADC?
The maximum sampling rate is 30 kSPS (kilo samples per second).
3. How many input channels does it support?
It supports four differential input channels.
4. What is the operating voltage range?
The ADC operates on a single 5V supply.
5. Is the ADS1254E/2K5G4 suitable for industrial environments?
Yes, it is designed to operate reliably in industrial temperature ranges from -40°C to +85°C.
6. What is the power consumption of this ADC?
The typical power consumption is 38 mW.
7. What interface does it use for communication?
It uses an SPI interface for communication with microcontrollers or other devices.
8. Can it be used in medical applications?
Yes, its high resolution and low noise make it ideal for medical instrumentation.
9. What package does the ADS1254E/2K5G4 come in?
It is available in a TSSOP-20 package.
10. What are the key advantages of this ADC?
Key advantages include high resolution, low power consumption, and robust performance in challenging environments.
