Overview

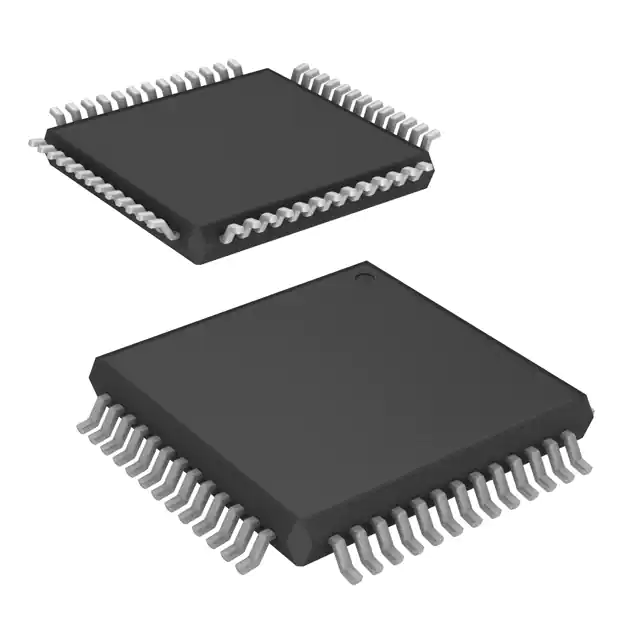

The UPSD3233B-40T6T is a microcontroller from STMicroelectronics, part of the uPSD32xx series. This device combines a fast 8051-based microcontroller with a flexible memory structure, programmable logic, and a rich set of peripherals. Although this product is no longer in production, it remains relevant for existing designs and legacy systems.
Key Specifications
| Specification | Value |
|---|---|
| Microcontroller Type | 8051-based |
| Operating Voltage | 5.0V |
| Maximum Clock Frequency | 40MHz |
| Flash Memory | 160KB (160K x 8) |
| Packaging | Tape & Reel (TR) |
| Status | Obsolete |
Key Features
- Fast 8051-based microcontroller core
- Flexible memory structure including 160KB of flash memory
- Programmable logic for custom applications
- Rich set of peripherals for various interfaces and functionalities
Applications
The UPSD3233B-40T6T is suitable for a variety of applications requiring a robust and flexible microcontroller. These include industrial control systems, consumer electronics, automotive systems, and other embedded systems where programmable logic and a strong peripheral set are necessary.
Q & A
- What is the core architecture of the UPSD3233B-40T6T? The core architecture is based on the 8051 microcontroller.
- What is the maximum operating voltage of the UPSD3233B-40T6T? The maximum operating voltage is 5.0V.
- What is the maximum clock frequency of the UPSD3233B-40T6T? The maximum clock frequency is 40MHz.
- How much flash memory does the UPSD3233B-40T6T have? It has 160KB (160K x 8) of flash memory.
- What is the packaging type for the UPSD3233B-40T6T? The packaging type is Tape & Reel (TR).
- Is the UPSD3233B-40T6T still in production? No, the UPSD3233B-40T6T is obsolete and no longer in production.
- What are some typical applications for the UPSD3233B-40T6T? Typical applications include industrial control systems, consumer electronics, and automotive systems.
- Does the UPSD3233B-40T6T have programmable logic? Yes, it has programmable logic for custom applications.
- What kind of peripherals does the UPSD3233B-40T6T have? It has a rich set of peripherals for various interfaces and functionalities.
- Where can I find detailed specifications for the UPSD3233B-40T6T? Detailed specifications can be found in the datasheet available from STMicroelectronics or distributors like Mouser and Digi-Key.
