Overview

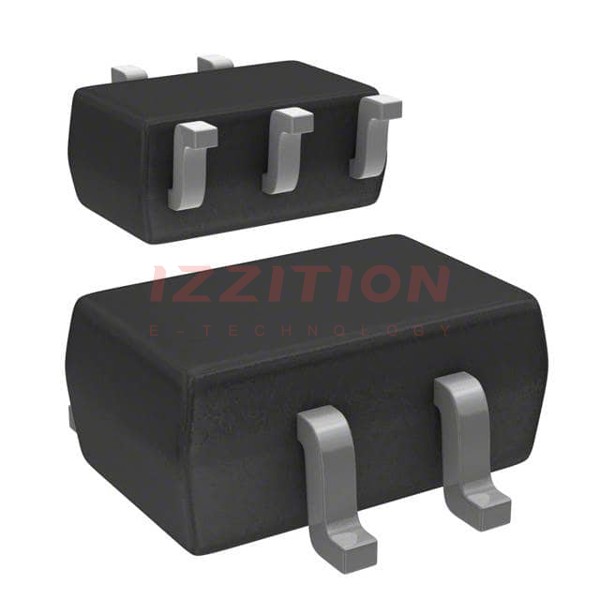

The TSV6391AICT is a single operational amplifier produced by STMicroelectronics. It is designed for low voltage and low power operation, featuring rail-to-rail input and output capabilities. This micropower CMOS operational amplifier is ideal for applications requiring high performance and low power consumption.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 1 |
| Package Type | SC-70-5 |
| Supply Voltage Range | 1.5V to 5.5V |
| Gain Bandwidth Product | 2.4 MHz |
| Input Bias Current | 10 pA |
| Input Offset Voltage (Vos) | 500 µV |
| Common Mode Rejection Ratio | 60 dB |
Key Features
- Rail-to-rail input and output
- Low power consumption (micropower)
- Wide bandwidth (2.4 MHz)
- Low input bias current (10 pA)
- Low input offset voltage (500 µV)
- High common mode rejection ratio (60 dB)
Applications
The TSV6391AICT is suitable for a variety of applications, including:
- Portable and battery-powered devices due to its low power consumption
- Audio and signal processing circuits where low noise and high bandwidth are required
- Sensor interfaces and data acquisition systems
- General-purpose amplification in consumer electronics and industrial control systems
Q & A
- What is the supply voltage range of the TSV6391AICT?
The supply voltage range is from 1.5V to 5.5V. - What is the gain bandwidth product of the TSV6391AICT?
The gain bandwidth product is 2.4 MHz. - What is the input bias current of the TSV6391AICT?
The input bias current is 10 pA. - What is the input offset voltage of the TSV6391AICT?
The input offset voltage is 500 µV. - What is the common mode rejection ratio of the TSV6391AICT?
The common mode rejection ratio is 60 dB. - What package type does the TSV6391AICT come in?
The TSV6391AICT comes in an SC-70-5 package. - Is the TSV6391AICT suitable for low power applications?
Yes, it is designed for low power operation. - Does the TSV6391AICT have rail-to-rail input and output capabilities?
Yes, it features rail-to-rail input and output. - What are some typical applications of the TSV6391AICT?
Typical applications include portable and battery-powered devices, audio and signal processing circuits, sensor interfaces, and general-purpose amplification in consumer electronics and industrial control systems. - Where can I find detailed specifications for the TSV6391AICT?
Detailed specifications can be found in the datasheet available on STMicroelectronics' official website and other electronic component distributors like Digi-Key and TME.
