Overview
The TSH110ILT, produced by STMicroelectronics, is a single current feedback operational amplifier. It is part of the TSH110-TSH114 family, which includes single, dual, triple, and quad configurations. This device is known for its high slew rate, low noise, and wide bandwidth, making it suitable for various high-performance applications.

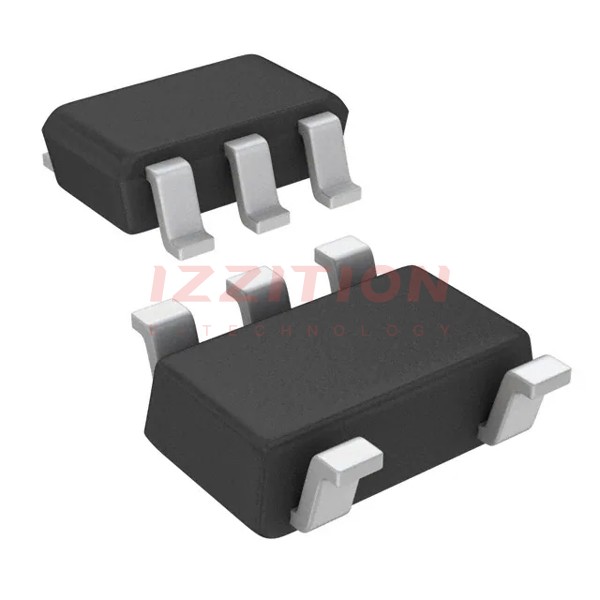

The TSH110ILT operates with a supply voltage range of 5V to 12V or ±2.5V to ±6V, and it features a low quiescent supply current of 3.2mA. The amplifier is available in a compact SOT23-5 package, which is ideal for space and weight savings in modern electronic designs.
Key Specifications
| Parameter | Test Conditions | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|
| VCC | Supply voltage | - | - | 14 | V |
| Vio | Input offset voltage | -1.5 | 0.3 | 2.0 | mV |
| ΔVio | Input offset voltage drift vs. temperature | - | - | 5 | μV/°C |
| Iib+ | Non-inverting input bias current | -10 | 1.4 | 13 | μA |
| Iib- | Inverting input bias current | -3 | 1.9 | 7 | μA |
| ICC | Supply current per operator | - | 3.2 | 4 | mA |
| BW | -3dB bandwidth | - | - | 100 | MHz |
| SR | Slew rate | - | 160 | 450 | V/μs |
| Voh | High level output voltage | 1.4 | 2 | - | V |
| Vol | Low level output voltage | -1.8 | -1.3 | - | V |
Key Features
- Low noise: 3nV/√Hz
- Low supply current: 3.2mA
- High output current: up to 47mA
- Wide bandwidth: 100MHz
- High slew rate: up to 450V/μs
- Low distortion
- Compact SOT23-5 package
- Standby function (for TSH111 and TSH113 models)
Applications
- High-end video drivers
- Receiver for xDSL
- A/D converter drivers
- High-end audio applications
Q & A
- What is the typical supply current of the TSH110ILT?
The typical supply current per operator is 3.2mA.
- What is the maximum bandwidth of the TSH110ILT?
The maximum bandwidth is 100MHz.
- What is the slew rate of the TSH110ILT?
The slew rate is up to 450V/μs.
- What are the available package options for the TSH110ILT?
The TSH110ILT is available in a SOT23-5 package.
- What is the input offset voltage of the TSH110ILT?
The input offset voltage is typically 0.3mV and can range from -1.5mV to 2.0mV.
- Does the TSH110ILT have a standby function?
No, the TSH110ILT does not have a standby function. This feature is available in the TSH111 and TSH113 models.
- What are the typical applications of the TSH110ILT?
Typical applications include high-end video drivers, xDSL receivers, A/D converter drivers, and high-end audio applications.
- What is the maximum output current of the TSH110ILT?
The maximum output current is up to 47mA.
- What is the noise level of the TSH110ILT?
The noise level is 3nV/√Hz.
- What is the common mode rejection ratio (CMR) of the TSH110ILT?
The CMR is typically 60dB.
