Overview
The TMMBAT42FILM is a general-purpose metal to silicon small signal Schottky diode manufactured by STMicroelectronics. This device is characterized by its very low turn-on voltage and fast switching capabilities, making it suitable for a variety of applications. It features integrated protection against excessive voltage, such as electrostatic discharges, enhancing its reliability and durability.
Key Specifications
| Parameter | Value |
|---|---|
| Diode Configuration | Single |
| Repetitive Peak Reverse Voltage | 30 V |
| Average Forward Current | 200 mA |
| Forward Voltage Max | 400 mV |
| Forward Surge Current | 4 A |
| Operating Temperature Max | 125°C |

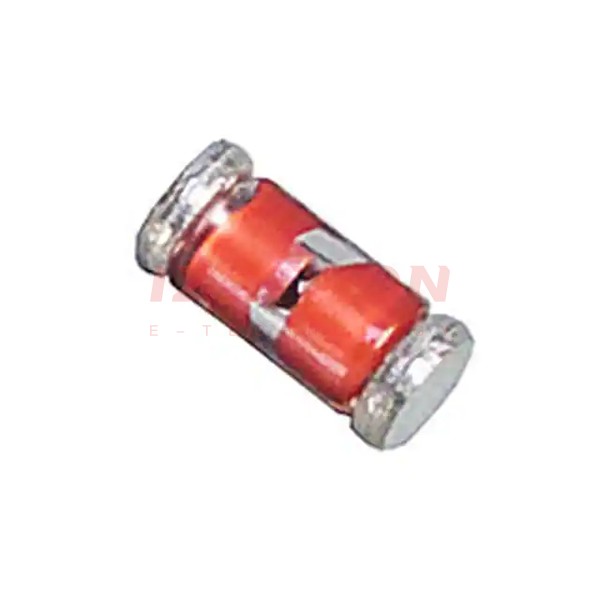

| Diode Case Style | SOD-80 (MiniMELF) |
| No. of Pins | 2 Pins |
| Reverse Recovery Time | 5 ns |
| Diode Mounting | Surface Mount |
| Power Dissipation | 200 mW |
| Maximum Temperature for Soldering | 260°C (for 15s) |
| Junction to Leads Thermal Resistance | 300°C/W |
Key Features
- Very small conduction losses
- Negligible switching losses
- Low forward voltage drop
- Integrated protection against excessive voltage such as electrostatic discharges
- Fast switching capabilities
- Surface mount technology for easy integration into modern designs
Applications
The TMMBAT42FILM Schottky diode is suitable for various applications, including:
- Signal Processing
- RF Communications
Q & A
- What is the repetitive peak reverse voltage of the TMMBAT42FILM diode?
The repetitive peak reverse voltage is 30 V.
- What is the average forward current of the TMMBAT42FILM diode?
The average forward current is 200 mA.
- What is the maximum forward voltage of the TMMBAT42FILM diode?
The maximum forward voltage is 400 mV.
- What is the forward surge current of the TMMBAT42FILM diode?
The forward surge current is 4 A.
- What is the operating temperature range of the TMMBAT42FILM diode?
The maximum operating temperature is 125°C.
- What is the case style of the TMMBAT42FILM diode?
The diode case style is SOD-80 (MiniMELF).
- How many pins does the TMMBAT42FILM diode have?
The diode has 2 pins.
- What is the reverse recovery time of the TMMBAT42FILM diode?
The reverse recovery time is 5 ns.
- Is the TMMBAT42FILM diode RoHS compliant?
Yes, the TMMBAT42FILM diode is RoHS compliant.
- What are some typical applications of the TMMBAT42FILM diode?
Typical applications include signal processing and RF communications.
