Overview

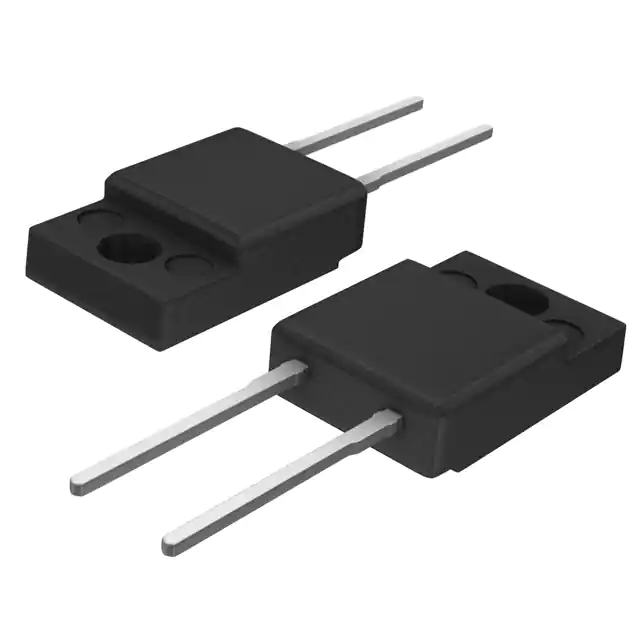

The STTH15L06FP, produced by STMicroelectronics, is a high-performance rectifier diode utilizing ST Turbo 2 600 V technology. This component is specifically designed for use in switching power supplies and industrial applications, particularly as a rectification and discontinuous mode PFC (Power Factor Correction) boost diode. Its ultrafast switching capabilities and low reverse recovery current make it an ideal choice for applications requiring high efficiency and minimal losses.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 600 | V |
| Average Forward Current (IF(AV)) | Up to 20 A | A |
| Forward RMS Current (IF(RMS)) | 30 A | A |
| Surge Non-Repetitive Forward Current (IFSM) | 200 A | A |
| Maximum Operating Junction Temperature (Tj) | 175 °C | °C |
| Typical Forward Voltage Drop (VF) | 0.95 V | V |
| Reverse Recovery Time (trr) | 55 ns | ns |
| Junction to Case Thermal Resistance (Rth(j-c)) | 1.7 °C/W (TO-220AC/D²PAK), 4.0 °C/W (TO-220FPAC) | °C/W |
| Storage Temperature Range | -65 to +175 °C | °C |
Key Features
- Ultrafast Switching: The STTH15L06FP features ultrafast switching, which reduces switching losses and enhances overall efficiency.
- Low Reverse Recovery Current: This diode has a low reverse recovery current, minimizing conduction losses and improving performance in high-frequency applications.
- Low Thermal Resistance: With a low thermal resistance, the component can handle high power dissipation efficiently.
- High Voltage Capability: It can handle a repetitive peak reverse voltage of 600 V, making it suitable for high-voltage applications.
- RoHS Compliant: The STTH15L06FP is RoHS compliant, ensuring environmental sustainability.
Applications
The STTH15L06FP is particularly suited for use in:
- Switching Power Supplies: Its ultrafast switching and low reverse recovery current make it ideal for high-efficiency power supplies.
- Industrial Applications: It is used in various industrial applications requiring high reliability and performance.
- Discontinuous Mode PFC Boost Diodes: The diode is optimized for use in discontinuous mode PFC boost circuits, enhancing power factor correction in power supplies.
Q & A
- What is the maximum repetitive peak reverse voltage of the STTH15L06FP?
The maximum repetitive peak reverse voltage is 600 V.
- What is the average forward current rating of the STTH15L06FP?
The average forward current rating is up to 20 A, depending on the case temperature.
- What is the reverse recovery time of the STTH15L06FP?
The reverse recovery time is 55 ns.
- What are the typical applications of the STTH15L06FP?
It is used in switching power supplies, industrial applications, and as a discontinuous mode PFC boost diode.
- Is the STTH15L06FP RoHS compliant?
- What is the maximum operating junction temperature of the STTH15L06FP?
The maximum operating junction temperature is 175 °C.
- What is the surge non-repetitive forward current rating of the STTH15L06FP?
The surge non-repetitive forward current rating is 200 A.
- What are the available package types for the STTH15L06FP?
The available package types include TO-220AC, TO-220FPAC, and D²PAK.
- What is the typical forward voltage drop of the STTH15L06FP?
The typical forward voltage drop is 0.95 V.
- What is the junction to case thermal resistance of the STTH15L06FP?
The junction to case thermal resistance is 1.7 °C/W for TO-220AC and D²PAK, and 4.0 °C/W for TO-220FPAC.
