Overview

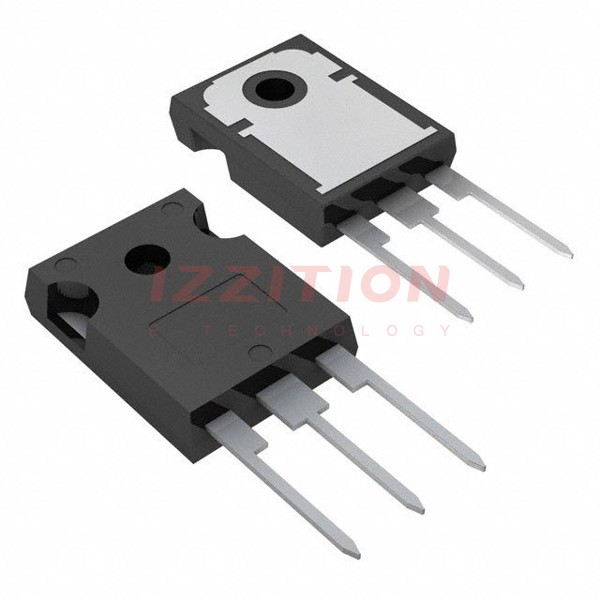

The STPS80170CWLY is a dual diode common cathode Schottky rectifier produced by STMicroelectronics. This component is specifically designed for high frequency switched mode power supplies. Packaged in the TO-247 format, it is optimized to enhance the reliability of the application. The STPS80170CWLY is particularly suited for automotive and industrial applications where high efficiency and reliability are crucial.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating (V) | 170 V |
| Current Rating (A) | 80 A |
| Package | TO-247 |
| Junction Temperature (°C) | 175 °C |
| Operating Temperature (°C) | -40 to 150 °C |
| Thermal Resistance | Low thermal resistance |
| RoHS Compliance | Ecopack2 compliant |
Key Features
- High junction temperature capability
- Low leakage current
- Good trade off between leakage current and forward voltage drop
- Low thermal resistance
- High frequency operation
- Avalanche capability
- ECOPACK2 compliant
Applications
The STPS80170CWLY is ideal for various high-frequency switched mode power supply applications, including:
- Automotive systems
- Industrial power supplies
- High-efficiency power conversion systems
- Switch-mode power supplies
Q & A
- What is the voltage rating of the STPS80170CWLY?
The voltage rating of the STPS80170CWLY is 170 V. - What is the current rating of the STPS80170CWLY?
The current rating of the STPS80170CWLY is 80 A. - In what package is the STPS80170CWLY available?
The STPS80170CWLY is packaged in TO-247. - What is the maximum junction temperature of the STPS80170CWLY?
The maximum junction temperature of the STPS80170CWLY is 175 °C. - Is the STPS80170CWLY RoHS compliant?
Yes, the STPS80170CWLY is ECOPACK2 compliant, which means it is RoHS compliant. - What are the key features of the STPS80170CWLY?
The key features include high junction temperature capability, low leakage current, good trade off between leakage current and forward voltage drop, low thermal resistance, high frequency operation, and avalanche capability. - What are the typical applications of the STPS80170CWLY?
The typical applications include automotive systems, industrial power supplies, high-efficiency power conversion systems, and switch-mode power supplies. - How does the STPS80170CWLY enhance application reliability?
The STPS80170CWLY enhances application reliability through its high junction temperature capability, low thermal resistance, and avalanche capability. - Is the STPS80170CWLY suitable for high-frequency operations?
Yes, the STPS80170CWLY is specifically designed for high-frequency switched mode power supplies. - Where can I find more detailed specifications and resources for the STPS80170CWLY?
You can find more detailed specifications and resources on the official STMicroelectronics website, as well as through distributors like Mouser and Heisener.
