Overview
The STM6524AUABDL6F, produced by STMicroelectronics, is a 6-pin Smart Reset™ device designed to provide a reliable and stable reset mechanism for various electronic systems. This component ensures that inadvertent short reset push-button closures do not cause system resets, enhancing overall system stability.
Key Specifications
| Parameter | Description | Value | Unit |
|---|---|---|---|
| Operating Voltage | VCC range | 1.65 to 5.5 | V |
| Supply Current | ICC at VCC = 3.0 V and VCC = 5.0 V | 1.1 to 3.0 | µA |
| Smart Reset™ Delay (tSRC) | Factory-programmable delay from 0.5 s to 10 s in 0.5 s steps | 0.5 to 10 | s |
| Reset Output | Active low or active high, push-pull or open drain with optional pull-up resistor | - | - |
| Operating Temperature | TA range | -40 to +85 | °C |

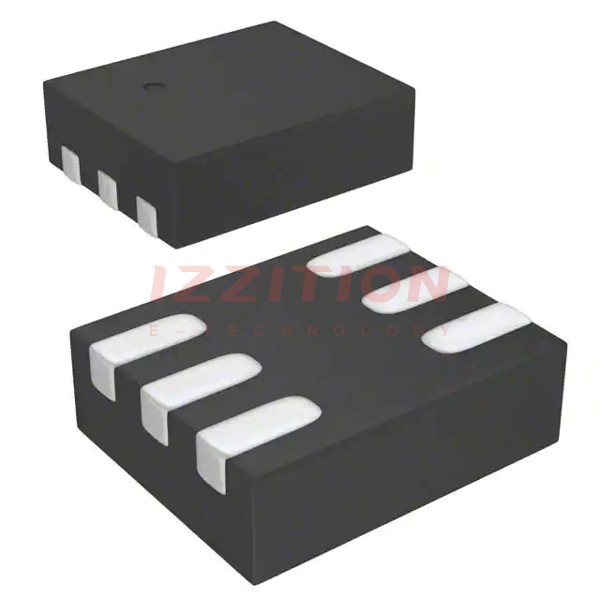

| Package | UDFN6 package dimensions | 1.6 mm x 1.3 mm x 0.55 mm | - |
| ESD Protection | Human body model, charged device model, machine model | 2 kV, 1 kV, 200 V | - |
Key Features
- Dual Smart Reset™ push-button inputs with fixed extended reset setup delay (tSRC) from 0.5 s to 10 s in 0.5 s steps.
- Option with internal pull-up resistor for Smart Reset™ inputs and reset output.
- Push-button controlled reset pulse duration: fully push-button controlled or defined output reset pulse duration (tREC), factory-programmed.
- No power-on reset.
- Integrated test mode for quick testing without repeating test mode triggering.
- High glitch immunity and feedback to user about entry to the test mode.
- ECOPACK®2 (RoHS compliant, Halogen-Free) packaging.
Applications
- Mobile phones, smartphones, and PDAs.
- E-books and MP3 players.
- Games and portable navigation devices.
- Any application requiring delayed reset push-button(s) response for improved system stability.
Q & A
- What is the operating voltage range of the STM6524AUABDL6F?
The operating voltage range is from 1.65 V to 5.5 V. - How does the Smart Reset™ feature work?
The Smart Reset™ feature ensures that both push-button inputs must be asserted simultaneously for at least the specified delay (tSRC) to trigger a reset. - What are the options for the reset output?
The reset output can be active low or active high, and it can be either push-pull or open drain with an optional internal pull-up resistor. - What is the operating temperature range of the device?
The operating temperature range is from -40 °C to +85 °C. - What package type is the STM6524AUABDL6F available in?
The device is available in a UDFN6 package with dimensions of 1.6 mm x 1.3 mm x 0.55 mm. - Does the device have ESD protection?
Yes, the device has ESD protection with ratings of 2 kV for the human body model, 1 kV for the charged device model, and 200 V for the machine model. - How does the test mode work?
The test mode can be entered by applying a voltage higher than VCC to the SR0 input, and it allows for quick testing without repeating the test mode triggering process. - What is the significance of the internal pull-up resistor option?
The internal pull-up resistor option simplifies the circuit design by eliminating the need for external pull-up resistors on the Smart Reset™ inputs and reset output. - Can the reset pulse duration be controlled?
Yes, the reset pulse duration can be either fully push-button controlled or defined by a factory-programmed output reset pulse duration (tREC). - Is the device RoHS compliant?
Yes, the device is RoHS compliant and comes in an ECOPACK®2 (Halogen-Free) package.
