Overview
The STM32G071EBY6TR is a mainstream microcontroller from STMicroelectronics, based on the high-performance Arm® Cortex®-M0+ 32-bit RISC core. This MCU operates at a frequency of up to 64 MHz and is designed for a wide range of applications in consumer, industrial, and appliance domains, as well as for Internet of Things (IoT) solutions. It offers a high level of integration, including advanced peripherals and power-saving features, making it suitable for low-power applications.
Key Specifications
| Specification | Details |
|---|---|
| Core | Arm® 32-bit Cortex®-M0+ CPU, up to 64 MHz |
| Memory | Up to 128 Kbytes of Flash memory, 36 Kbytes of SRAM (32 Kbytes with HW parity check) |
| Operating Temperature | -40°C to 85°C/105°C/125°C |
| Voltage Range | 1.7 V to 3.6 V |
| Communication Interfaces | Two I²C-bus interfaces, four USARTs, two SPIs, one I²S, HDMI CEC, USB Type-C Power Delivery controller |
| ADC/DAC | One 12-bit ADC (2.5 MSps) with up to 19 channels, two 12-bit DACs with two channels |
| Timers | 14 timers including 16-bit and 32-bit timers, advanced motor control timers, watchdog timers, SysTick timer |

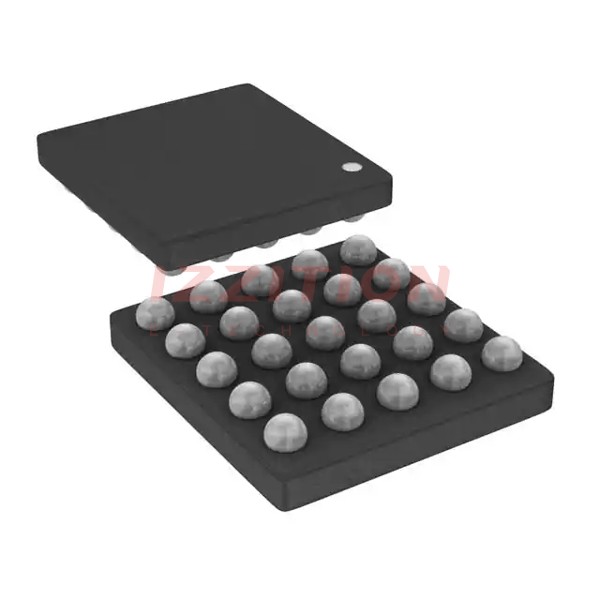

| Package | WLCSP 25 2.3x2.5x0.6 P 0.4 mm |
| Low-Power Modes | Sleep, Stop, Standby, Shutdown |
Key Features
- High-performance Arm® Cortex®-M0+ 32-bit RISC core with up to 64 MHz frequency
- Up to 128 Kbytes of Flash memory with protection and securable area, and 36 Kbytes of SRAM
- Extensive range of system functions, enhanced I/Os, and peripherals
- Standard communication interfaces including I²C, SPI, USART, I²S, and HDMI CEC
- 12-bit ADC and 12-bit DAC with low-power sample-and-hold
- Two fast low-power analog comparators with programmable input and output
- Multiple timers including advanced motor control, general-purpose, and low-power timers
- Calendar RTC with alarm and periodic wakeup from Stop/Standby/Shutdown
- VBAT supply for RTC and backup registers
- Low-power modes and power-saving features
- 96-bit unique ID and ECOPACK2 compliant packages
Applications
The STM32G071EBY6TR is versatile and can be used in a variety of applications, including:
- Consumer electronics
- Industrial automation and control systems
- Appliance control systems
- Internet of Things (IoT) solutions
- Advanced motor control systems
- Low-power applications requiring efficient power management
Q & A
- What is the core architecture of the STM32G071EBY6TR?
The core architecture is based on the Arm® 32-bit Cortex®-M0+ CPU.
- What is the maximum operating frequency of the STM32G071EBY6TR?
The maximum operating frequency is up to 64 MHz.
- How much Flash and SRAM memory does the STM32G071EBY6TR have?
It has up to 128 Kbytes of Flash memory and 36 Kbytes of SRAM.
- What are the operating temperature ranges for the STM32G071EBY6TR?
The operating temperature ranges are -40°C to 85°C/105°C/125°C.
- What communication interfaces are available on the STM32G071EBY6TR?
The available interfaces include I²C, SPI, USART, I²S, HDMI CEC, and USB Type-C Power Delivery controller.
- Does the STM32G071EBY6TR support low-power modes?
- What types of timers are available on the STM32G071EBY6TR?
The device includes 16-bit and 32-bit timers, advanced motor control timers, watchdog timers, and a SysTick timer.
- Is the STM32G071EBY6TR suitable for IoT applications?
- What is the package type for the STM32G071EBY6TR?
The package type is WLCSP 25 2.3x2.5x0.6 P 0.4 mm.
- Does the STM32G071EBY6TR have a unique ID?
