Overview

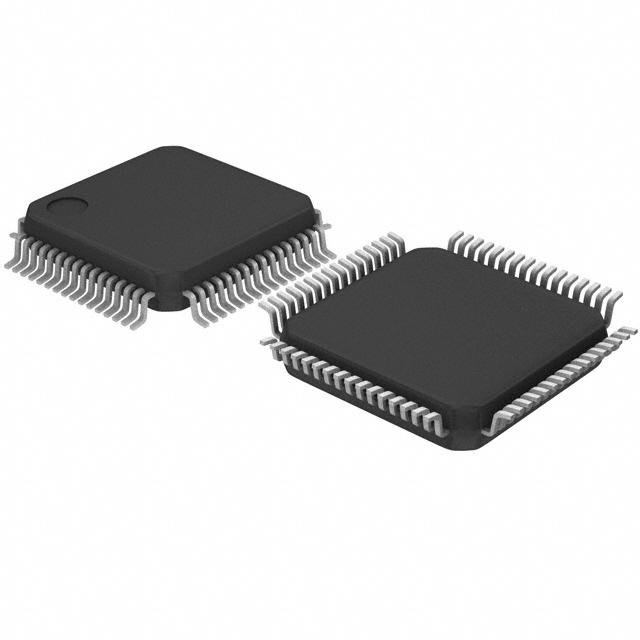

The STM32F423RHT6TR is a high-performance microcontroller from STMicroelectronics, part of the STM32F4 series. It features an Arm Cortex-M4 core with a Digital Signal Processing (DSP) unit and a Floating-Point Unit (FPU), making it suitable for a wide range of applications that require advanced processing capabilities. The device is equipped with 1.5 MBytes of Flash memory and operates at a maximum clock speed of 100 MHz. Additionally, it includes an ART Accelerator, DFSDM (Delta-Sigma Modulator), and AES (Advanced Encryption Standard) hardware accelerator, enhancing its performance and security features.
Key Specifications
| Specification | Value |
|---|---|
| Core | ARM Cortex-M4 |
| Program Memory Type | Flash |
| Program Memory Size | 1.5 MBytes |
| CPU Speed | 100 MHz |
| Data Bus Width | 32 bit |
| Number of ADC Channels | 16 Channel |
| ADC Resolution | 12 bit |
| Number of I/Os | 50 I/O |
| Mounting Style | SMD/SMT |
Key Features
- High-performance Arm Cortex-M4 core with DSP and FPU
- 1.5 MBytes of Flash memory
- 100 MHz CPU speed
- ART Accelerator for improved performance
- DFSDM (Delta-Sigma Modulator) for advanced analog-to-digital conversion
- AES hardware accelerator for enhanced security
- 16-channel ADC with 12-bit resolution
- 50 I/O pins for versatile connectivity
Applications
The STM32F423RHT6TR is versatile and can be used in a variety of applications, including but not limited to:
- Industrial automation and control systems
- Medical devices requiring advanced signal processing
- Aerospace and defense systems
- Automotive systems, especially those requiring high-speed processing and security
- Consumer electronics that demand high performance and low power consumption
Q & A
- What is the core type of the STM32F423RHT6TR?
The core type is Arm Cortex-M4 with DSP and FPU. - How much Flash memory does the STM32F423RHT6TR have?
The device has 1.5 MBytes of Flash memory. - What is the maximum CPU speed of the STM32F423RHT6TR?
The maximum CPU speed is 100 MHz. - How many ADC channels does the STM32F423RHT6TR have?
The device has 16 ADC channels with 12-bit resolution. - What is the mounting style of the STM32F423RHT6TR?
The mounting style is SMD/SMT. - Does the STM32F423RHT6TR have any security features?
Yes, it includes an AES hardware accelerator for enhanced security. - What is the data bus width of the STM32F423RHT6TR?
The data bus width is 32 bits. - How many I/O pins does the STM32F423RHT6TR have?
The device has 50 I/O pins. - What are some common applications of the STM32F423RHT6TR?
Common applications include industrial automation, medical devices, aerospace, automotive systems, and consumer electronics. - Does the STM32F423RHT6TR support advanced analog-to-digital conversion?
Yes, it includes a DFSDM (Delta-Sigma Modulator) for advanced analog-to-digital conversion.
