Overview
The ST72F63BK4M1 is an 8-bit microcontroller unit (MCU) produced by STMicroelectronics. It is part of the ST7 family, known for its ST7 CISC (Complex Instruction Set Computer) architecture. This MCU is designed for various embedded applications, offering a balance of performance, power efficiency, and feature set. The ST72F63BK4M1 is particularly suited for applications requiring low to medium complexity and is notable for its integration of USB, SPI, SCI, and I2C interfaces.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | STMicroelectronics |

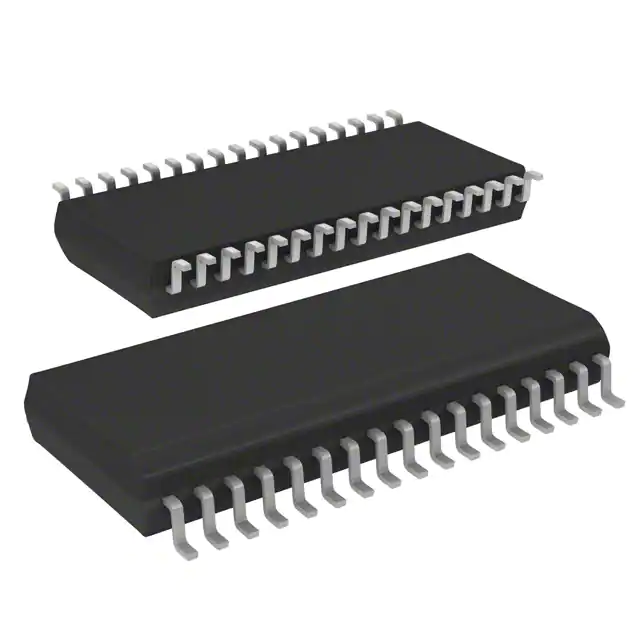

| Package | SSOP-34, PSDIP32 |
| Core Processor | ST7 |
| Program Memory Size | 16 kB Flash |
| Data Bus Width | 8 bit |
| ADC Resolution | 8 bit |
| Maximum Clock Frequency | 8 MHz |
| Number of GPIO | 27 I/O |
| Data RAM Size | 512 B |
| Supply Voltage - Min | 4 V |
| Max Supply Voltage | 5.5 V |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | +70 |
| Interface Type | SCI, SPI, I2C, USB |
| Number of Timers/Counters | 2 Timer |
| Number of ADC Channels | 12 Channel |
Key Features
- 8-bit ST7 CISC Core: Provides efficient execution of instructions and supports a wide range of applications.
- Flash Memory: 16 kB of flash memory for program storage, allowing for flexible and secure code updates.
- USB, SPI, SCI, and I2C Interfaces: Supports multiple communication protocols, enhancing connectivity and versatility.
- ADC and Timers: Includes an 8-bit ADC with 12 channels and two timers, facilitating analog-to-digital conversion and timing functions.
- Low Power Consumption: Operates within a voltage range of 4V to 5.5V, making it suitable for battery-powered devices.
- Peripheral Set: Features DMA, LVD, POR, PWM, and WDT, providing a comprehensive set of peripherals for various applications.
Applications
- Embedded Systems: Ideal for use in embedded systems requiring low to medium complexity, such as industrial control, consumer electronics, and automotive systems.
- Industrial Automation: Suitable for applications involving motor control, sensor interfaces, and other industrial automation tasks.
- Consumer Electronics: Can be used in various consumer electronics products such as appliances, remote controls, and gaming devices.
- Automotive Systems: Applicable in automotive systems for functions like dashboard controls, sensor monitoring, and other vehicle-related applications.
Q & A
- What is the core architecture of the ST72F63BK4M1 MCU?
The ST72F63BK4M1 MCU is based on the 8-bit ST7 CISC core architecture.
- How much flash memory does the ST72F63BK4M1 have?
The ST72F63BK4M1 has 16 kB of flash memory.
- What are the supported communication interfaces of the ST72F63BK4M1?
The ST72F63BK4M1 supports USB, SPI, SCI, and I2C interfaces.
- What is the maximum clock frequency of the ST72F63BK4M1?
The maximum clock frequency is 8 MHz.
- How many GPIO pins does the ST72F63BK4M1 have?
The ST72F63BK4M1 has 27 I/O pins.
- What is the supply voltage range for the ST72F63BK4M1?
The supply voltage range is from 4 V to 5.5 V.
- What are the operating temperature ranges for the ST72F63BK4M1?
The operating temperature range is from 0°C to +70°C.
- Does the ST72F63BK4M1 have ADC capabilities?
Yes, it includes an 8-bit ADC with 12 channels.
- What kind of timers does the ST72F63BK4M1 have?
The ST72F63BK4M1 has two timers.
- Is the ST72F63BK4M1 still in production?
No, the ST72F63BK4M1 is no longer manufactured and is considered obsolete.
