Overview
The ST72F623F2M1TR is an 8-bit microcontroller from STMicroelectronics, part of the ST7 family. This microcontroller is designed for a wide range of applications requiring low power consumption and high performance. Although it is currently obsolete and no longer manufactured, it remains relevant for legacy systems and maintenance purposes.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Type | 8-bit |
| Clock Speed | 8 MHz |
| Memory Type | FLASH |
| Memory Size | 8 KB (8K x 8) |

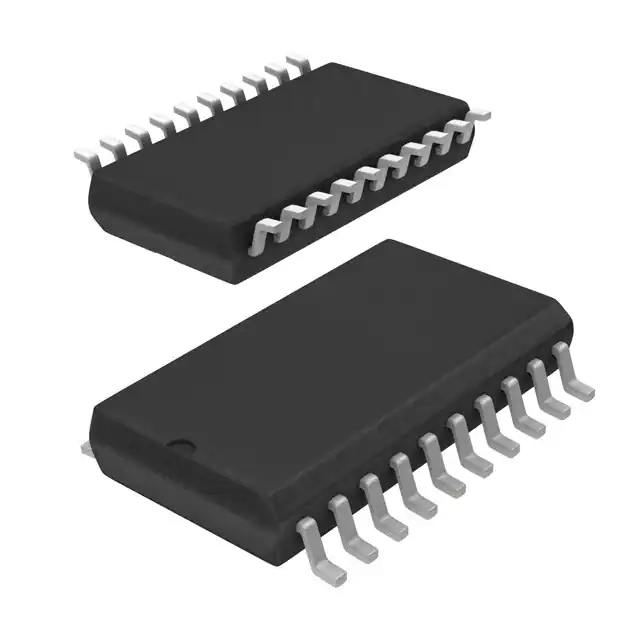

| Package Type | 20-SO (Small Outline) |
| Status | Obsolete |
Key Features
- Low power consumption, making it suitable for battery-powered devices.
- High performance 8-bit CPU.
- 8 KB of FLASH memory for program storage.
- On-chip peripherals such as timers, UART, and GPIO.
- Compact 20-pin SO package.
Applications
The ST72F623F2M1TR is versatile and can be used in various applications, including:
- Industrial control systems.
- Consumer electronics.
- Automotive systems.
- Medical devices.
- Home appliances.
Q & A
- What is the clock speed of the ST72F623F2M1TR?
The clock speed of the ST72F623F2M1TR is 8 MHz. - How much memory does the ST72F623F2M1TR have?
The ST72F623F2M1TR has 8 KB of FLASH memory. - What is the package type of the ST72F623F2M1TR?
The package type is 20-SO (Small Outline). - Is the ST72F623F2M1TR still in production?
No, the ST72F623F2M1TR is obsolete and no longer manufactured. - What are some common applications for the ST72F623F2M1TR?
Common applications include industrial control systems, consumer electronics, automotive systems, medical devices, and home appliances. - What type of CPU does the ST72F623F2M1TR have?
The ST72F623F2M1TR has an 8-bit CPU. - Does the ST72F623F2M1TR support low power consumption?
Yes, the ST72F623F2M1TR is designed for low power consumption. - What peripherals are typically included in the ST72F623F2M1TR?
Typical peripherals include timers, UART, and GPIO. - Where can I find detailed specifications for the ST72F623F2M1TR?
Detailed specifications can be found in the datasheet available on STMicroelectronics' official website or through distributors like Digi-Key. - Can I still purchase the ST72F623F2M1TR?
Due to its obsolete status, purchasing new units may be challenging. However, some distributors might have remaining stock or offer alternatives.
