Overview
The ST72C334N4T6 is a highly integrated 8-bit microcontroller designed and manufactured by STMicroelectronics. This microcontroller combines a compact form factor with advanced features, making it suitable for a variety of applications. Although it is now obsolete and no longer manufactured, it remains a significant component in legacy systems and for educational purposes.
Key Specifications
| Specification | Value |
|---|---|
| Core | ST7 |
| Program Memory Size | 16 kB |
| Data RAM Size | 512 B |

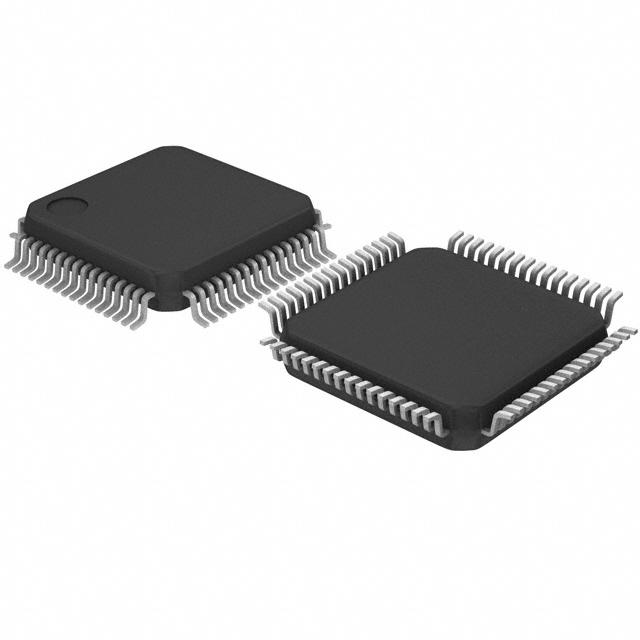

| Package / Case | TQFP-64 |
| Maximum Clock Frequency | 8 MHz |
| ADC Resolution | 8 bit |
| Number of I/Os | 32 |
Key Features
- Single voltage Flash memory
- 8-bit microcontroller architecture
- 16-bit timers
- SPI and SCI interfaces
- Compact form factor in TQFP-64 package
- Integrated ADC with 8-bit resolution
Applications
The ST72C334N4T6 microcontroller is versatile and can be used in various applications, including industrial control systems, automotive electronics, consumer appliances, and medical devices. Its integrated features such as timers, SPI, and SCI interfaces make it suitable for systems requiring communication and timing functionalities.
Q & A
- What is the core architecture of the ST72C334N4T6 microcontroller?
The core architecture is ST7, which is an 8-bit microcontroller. - What is the program memory size of the ST72C334N4T6?
The program memory size is 16 kB. - What is the maximum clock frequency of the ST72C334N4T6?
The maximum clock frequency is 8 MHz. - Does the ST72C334N4T6 have an ADC, and if so, what is its resolution?
Yes, it has an ADC with an 8-bit resolution. - What type of interfaces does the ST72C334N4T6 support?
The ST72C334N4T6 supports SPI and SCI interfaces. - In what package is the ST72C334N4T6 available?
The ST72C334N4T6 is available in a TQFP-64 package. - Is the ST72C334N4T6 still in production?
No, the ST72C334N4T6 is obsolete and no longer manufactured. - What are some common applications for the ST72C334N4T6 microcontroller?
Common applications include industrial control systems, automotive electronics, consumer appliances, and medical devices. - How much data RAM does the ST72C334N4T6 have?
The ST72C334N4T6 has 512 bytes of data RAM. - How many I/Os does the ST72C334N4T6 have?
The ST72C334N4T6 has 32 I/Os.
