Overview
The ST33HTPH2032AAF3 is a Trusted Platform Module (TPM) designed and manufactured by STMicroelectronics. This module is part of the STSAFE-TPM family, which offers standardized solutions for embedded, PC, mobile, and computing applications. The ST33HTPH2032AAF3 is specifically tailored to provide advanced security features, ensuring the confidentiality, integrity, and authenticity of information and devices. It is compliant with the Trusted Computing Group (TCG) standards and supports TPM 2.0 commands exclusively.
Key Specifications
| Specification | Description |
|---|---|
| Part Number | ST33HTPH2032AAF3 |
| Manufacturer | STMicroelectronics |

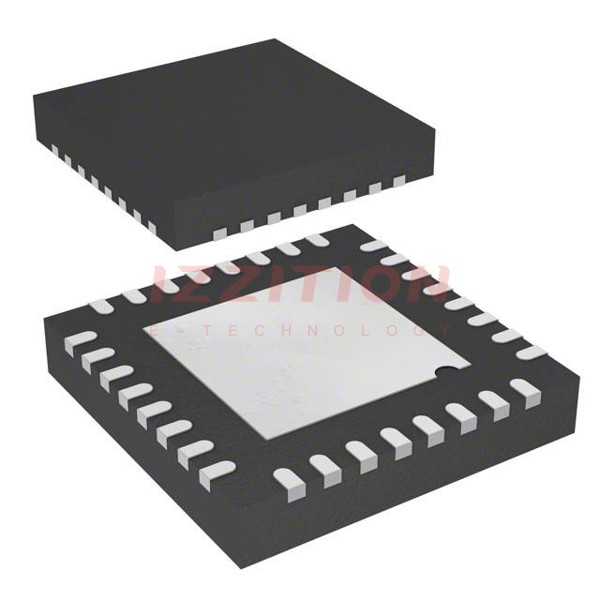

| Package | VQFN32 (Very thin pitch Quad pack no-lead 32-pin) |
| Package Dimensions | 5 x 5 mm |
| Supply Voltage | 1.8 V or 3.3 V |
| Operating Temperature Range | -25°C to +85°C (commercial), -40°C to +105°C (extended) |
| Interface | SPI (Serial Peripheral Interface) |
| Memory | 112 Kbytes of user-dedicated non-volatile memory |
| Processor | Arm SecurCore SC300™ processor |
| Cryptographic Support | AES-128/192/256, SHA-1 & SHA-256, ECC 224 & 256 bits, ECDH 224 & 256 bits, ECDAA |
| Compliance | TPM 2.0 compliant, Common Criteria (EAL4+), FIPS certified |
| RoHS Compliance | Yes, ECOPACK2 |
Key Features
- Advanced Security: The module includes an Arm SecurCore SC300™ processor with additional security features to protect against advanced forms of attack.
- Cryptographic Capabilities: Supports AES-128/192/256, SHA-1 & SHA-256, ECC 224 & 256 bits, ECDH 224 & 256 bits, and ECDAA.
- Interfaces: Compliant with SPI interface as per TCG PC Client TPM Profile specifications.
- Memory: Offers 112 Kbytes of user-dedicated non-volatile memory.
- Compliance: Compliant with TPM 2.0, Common Criteria (EAL4+), and FIPS certified.
- Environmental Robustness: Operates in a wide temperature range from -25°C to +85°C (commercial) and -40°C to +105°C (extended).
- Integration Ease: Easy to integrate due to the variety of supported interfaces and availability of TPM ecosystem software solutions.
Applications
- Embedded Systems: Suitable for integration into various embedded systems requiring high security.
- Personal Computers: Designed to be integrated into personal computers for enhanced security features.
- Mobile Devices: Can be used in mobile devices to ensure secure data storage and transmission.
- Computing Applications: Ideal for use in computing applications that require robust security measures.
- Industrial Systems: Applicable in industrial systems where secure data management is critical.
Q & A
- What is the ST33HTPH2032AAF3?
The ST33HTPH2032AAF3 is a Trusted Platform Module (TPM) designed by STMicroelectronics for advanced security in various applications.
- What interfaces does the ST33HTPH2032AAF3 support?
The module supports the SPI (Serial Peripheral Interface) as per TCG PC Client TPM Profile specifications.
- What cryptographic algorithms does the ST33HTPH2032AAF3 support?
The module supports AES-128/192/256, SHA-1 & SHA-256, ECC 224 & 256 bits, ECDH 224 & 256 bits, and ECDAA.
- What is the operating temperature range of the ST33HTPH2032AAF3?
The module operates in the -25°C to +85°C (commercial) and -40°C to +105°C (extended) temperature ranges.
- Is the ST33HTPH2032AAF3 RoHS compliant?
Yes, the module is RoHS compliant and comes in an ECOPACK2 package.
- What kind of memory does the ST33HTPH2032AAF3 have?
The module has 112 Kbytes of user-dedicated non-volatile memory.
- Is the ST33HTPH2032AAF3 FIPS certified?
Yes, the module is FIPS certified and also compliant with Common Criteria (EAL4+).
- What processor does the ST33HTPH2032AAF3 use?
The module uses an Arm SecurCore SC300™ processor.
- In what package is the ST33HTPH2032AAF3 available?
The module is available in a VQFN32 (Very thin pitch Quad pack no-lead 32-pin) package.
- What are some typical applications of the ST33HTPH2032AAF3?
The module is suitable for embedded systems, personal computers, mobile devices, and various computing applications requiring high security.
