ST13007DFP
  • Share:

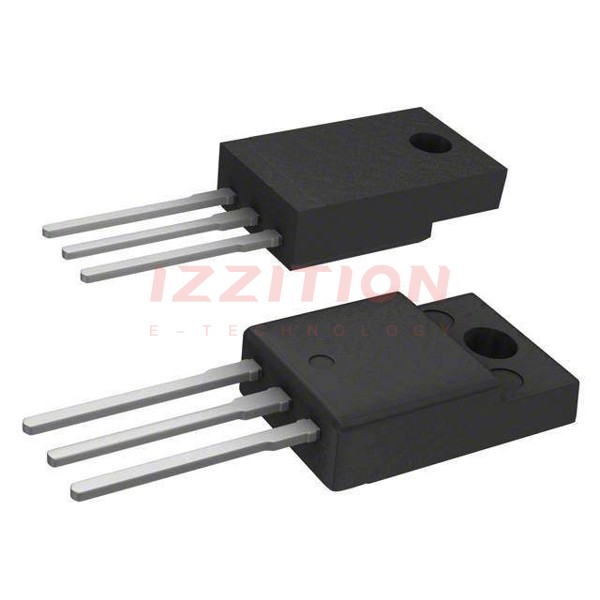

STMicroelectronics ST13007DFP

Manufacturer No:
ST13007DFP
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
TRANS NPN 400V 8A TO-220FP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The ST13007DFP is a high voltage fast-switching NPN power transistor manufactured by STMicroelectronics. This device is produced using high voltage Multi Epitaxial Planar technology, which enables high switching speeds and high voltage capability. The transistor features a Cellular Emitter structure with planar edge termination to enhance switching speeds while maintaining a wide Reverse Bias Safe Operating Area (RBSOA).

Key Specifications

ParameterValueUnit
Collector-emitter voltage (VCE) at IB = 0400V
Collector-emitter voltage (VCE) at VBE = 0700V
Emitter-base voltage (VEB) at IC = 09V
Collector current (IC)8A
Collector peak current (ICM)16A
Base current (IB)4A
Base peak current (IBM)8A
Total dissipation at Tc = 25 °C (PTOT)80W
Storage temperature (TSTG)-65 to 150°C
Max. operating junction temperature (TJ)150°C
Thermal resistance junction-case (RthJC)1.56°C/W

Key Features

  • Fully characterized at 125 °C.
  • Very high switching speed.
  • Fully insulated package (U.L. compliant) for easy mounting.
  • Improved specifications: lower leakage current, tighter gain range, DC current gain preselection, tighter storage time range.
  • Integrated free-wheeling diode.
  • High voltage capability.
  • Minimum lot-to-lot spread for reliable operation.
  • Large RBSOA.
  • Low spread of dynamic parameters.

Applications

  • Electronic ballast for fluorescent lighting.
  • Switch mode power supplies.

Q & A

  1. What is the collector-emitter voltage (VCE) of the ST13007DFP at IB = 0? The collector-emitter voltage (VCE) at IB = 0 is 400 V.
  2. What is the maximum collector current (IC) of the ST13007DFP? The maximum collector current (IC) is 8 A.
  3. What is the thermal resistance junction-case (RthJC) of the ST13007DFP? The thermal resistance junction-case (RthJC) is 1.56 °C/W.
  4. Does the ST13007DFP have an integrated free-wheeling diode? Yes, the ST13007DFP has an integrated free-wheeling diode.
  5. What are the typical applications of the ST13007DFP? The ST13007DFP is typically used in electronic ballast for fluorescent lighting and switch mode power supplies.
  6. What is the maximum operating junction temperature (TJ) of the ST13007DFP? The maximum operating junction temperature (TJ) is 150 °C.
  7. Is the ST13007DFP fully insulated? Yes, the ST13007DFP has a fully insulated package (U.L. compliant) for easy mounting.
  8. What technology is used to manufacture the ST13007DFP? The ST13007DFP is manufactured using high voltage Multi Epitaxial Planar technology.
  9. Does the ST13007DFP have a low spread of dynamic parameters? Yes, the ST13007DFP has a low spread of dynamic parameters.
  10. Is the ST13007DFP scheduled for obsolescence? Yes, the ST13007DFP is scheduled for obsolescence and will be discontinued by the manufacturer.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):8 A
Voltage - Collector Emitter Breakdown (Max):400 V
Vce Saturation (Max) @ Ib, Ic:2V @ 2A, 8A
Current - Collector Cutoff (Max):100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:8 @ 5A, 5V
Power - Max:36 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3 Full Pack
Supplier Device Package:TO-220FP
0 Remaining View Similar

In Stock

$1.48
98

Please send RFQ , we will respond immediately.
