Overview
The ST10F276Z5T3 is a 16-bit microcontroller from STMicroelectronics, part of the ST10 family. This device is designed for a wide range of applications, particularly those requiring high performance and advanced features. The microcontroller features a highly performant 16-bit CPU with DSP functions, making it suitable for demanding tasks. However, it is important to note that the ST10F276Z5T3 is currently obsolete and no longer manufactured by STMicroelectronics.
Key Specifications
| Attribute | Value |
|---|---|
| Manufacturer | STMicroelectronics |
| MFR. Part # | ST10F276Z5T3 |

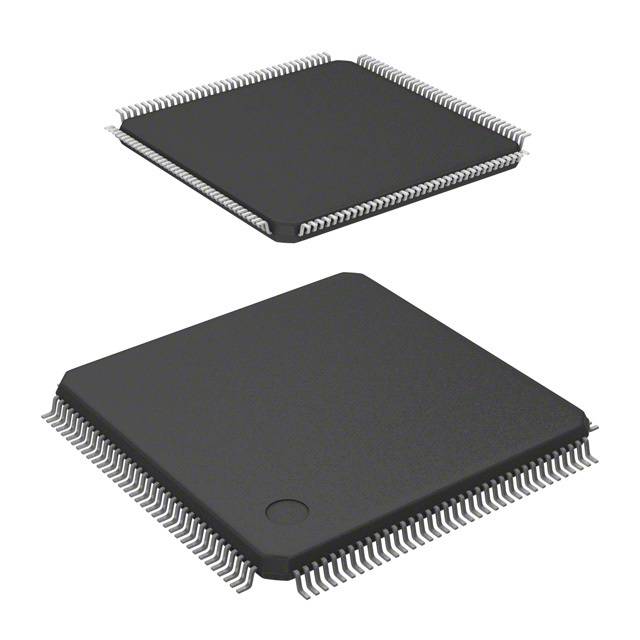

| Package | LQFP-144 (20x20) |
| Flash Memory | 832KB |
| RAM | 68KB |
| Operating Voltage | 4.5V ~ 5.5V |
| Maximum CPU Frequency | 40MHz (instruction cycle time: 31.25 ns at 64 MHz max.) |
| ECCN | 3A991A2 |
| RoHS Compliance | Yes |
Key Features
- High-Performance CPU: 16-bit CPU with DSP functions, offering a maximum instruction cycle time of 31.25 ns at 64 MHz.
- Memory: 832KB of Flash memory and 68KB of RAM, providing ample storage and processing capabilities.
- Operating Voltage: Operates within a range of 4.5V to 5.5V, making it versatile for various power supply conditions.
- Package: LQFP-144 (20x20) package, suitable for surface mount technology (SMT) assembly.
- RoHS Compliance: Compliant with RoHS regulations, ensuring environmental sustainability.
Applications
The ST10F276Z5T3 microcontroller is designed for a wide range of applications, including but not limited to:
- Industrial Control Systems: Suitable for controlling and monitoring industrial processes due to its high performance and reliability.
- Automotive Systems: Can be used in automotive applications requiring advanced control and processing capabilities.
- Consumer Electronics: Applicable in various consumer electronic devices that require robust and efficient microcontrollers.
- Medical Devices: Can be utilized in medical devices that demand high precision and reliability.
Q & A
- What is the ST10F276Z5T3 microcontroller?
The ST10F276Z5T3 is a 16-bit microcontroller from STMicroelectronics, part of the ST10 family, designed for high-performance applications.
- What is the maximum CPU frequency of the ST10F276Z5T3?
The maximum CPU frequency is 40MHz, with an instruction cycle time of 31.25 ns at 64 MHz max.
- What is the memory configuration of the ST10F276Z5T3?
The microcontroller has 832KB of Flash memory and 68KB of RAM.
- What is the operating voltage range of the ST10F276Z5T3?
The operating voltage range is 4.5V to 5.5V.
- Is the ST10F276Z5T3 RoHS compliant?
Yes, the ST10F276Z5T3 is RoHS compliant.
- What is the package type of the ST10F276Z5T3?
The package type is LQFP-144 (20x20).
- Is the ST10F276Z5T3 still in production?
No, the ST10F276Z5T3 is currently obsolete and no longer manufactured by STMicroelectronics.
- What are some typical applications of the ST10F276Z5T3?
Typical applications include industrial control systems, automotive systems, consumer electronics, and medical devices.
- What is the ECCN code for the ST10F276Z5T3?
The ECCN code is 3A991A2.
- Can I still purchase the ST10F276Z5T3?
Although it is obsolete, it may still be available from some distributors or through secondary markets, but it is no longer manufactured by STMicroelectronics.
