Overview
The SPC564L60L5CCFQR is a high-performance 32-bit microcontroller from STMicroelectronics, designed for automotive chassis and safety applications. This microcontroller is based on the e200z4d single core RISC architecture, utilizing Power Architecture technology. It features a core frequency of up to 120 MHz and is known for its dual-issue, five-stage pipeline, enhancing processing efficiency.
Key Specifications
| Specification | Details |
|---|---|
| Core Architecture | e200z4d single core RISC |
| Core Frequency | Up to 120 MHz |
| Flash Memory | 1 MB |

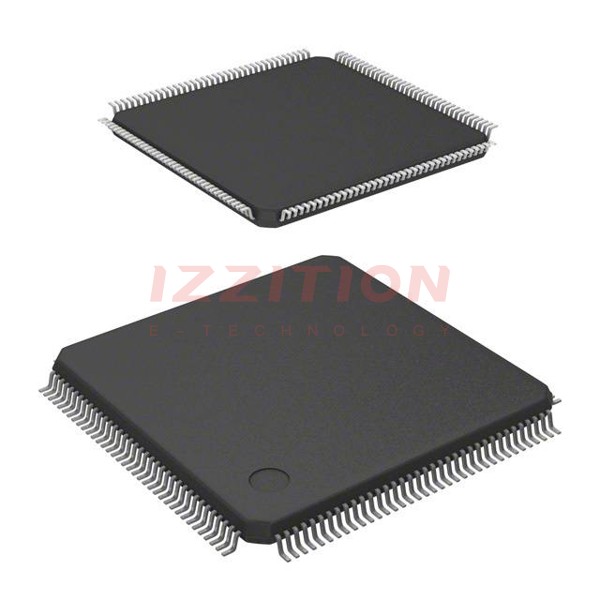

| Package Type | 144-Pin LQFP |
| Operating Voltage | 3V to 3.6V |
| Technology | 32-bit Power Architecture |
Key Features
- Dual-issue, five-stage pipeline for enhanced processing efficiency
- High-performance e200z4d single core RISC architecture
- 1 MB of flash memory for extensive program storage
- Operating voltage range of 3V to 3.6V, suitable for various automotive applications
- 144-Pin LQFP package, providing a compact and reliable form factor
Applications
The SPC564L60L5CCFQR microcontroller is specifically designed for automotive chassis and safety applications. It is suitable for use in advanced driver-assistance systems (ADAS), safety-critical systems, and other automotive control units that require high reliability and performance.
Q & A
- What is the core architecture of the SPC564L60L5CCFQR microcontroller?
The SPC564L60L5CCFQR microcontroller is based on the e200z4d single core RISC architecture. - What is the maximum core frequency of the SPC564L60L5CCFQR?
The maximum core frequency is up to 120 MHz. - How much flash memory does the SPC564L60L5CCFQR have?
The SPC564L60L5CCFQR has 1 MB of flash memory. - What is the package type of the SPC564L60L5CCFQR?
The package type is 144-Pin LQFP. - What is the operating voltage range of the SPC564L60L5CCFQR?
The operating voltage range is 3V to 3.6V. - What technology does the SPC564L60L5CCFQR use?
The SPC564L60L5CCFQR uses 32-bit Power Architecture technology. - What are the primary applications of the SPC564L60L5CCFQR?
The primary applications are automotive chassis and safety systems, including ADAS and safety-critical systems. - Is the SPC564L60L5CCFQR suitable for high-reliability applications?
Yes, it is designed for high-reliability applications in the automotive sector. - What is the significance of the dual-issue, five-stage pipeline in the SPC564L60L5CCFQR?
The dual-issue, five-stage pipeline enhances processing efficiency by allowing for simultaneous execution of instructions and optimizing the instruction pipeline. - Where can I find detailed datasheets for the SPC564L60L5CCFQR?
Detailed datasheets can be found on the official STMicroelectronics website, as well as on distributor websites like Mouser Electronics and Worldway Electronics.
