Overview
The SPC564A70L7COBR is a powerful 32-bit system-on-chip (SoC) microcontroller designed by STMicroelectronics, specifically tailored for mid-range engine control and automotive transmission control applications. This device boasts the e200z4 Power Architecture core, providing high-performance processing capabilities and low latency, making it an ideal choice for demanding embedded systems in automotive and industrial automation sectors.
Key Specifications
| Parameter | Value |
|---|---|
| Core Processor | e200z4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120 MHz |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 150 |
| Program Memory Size | 2 MB (2M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 128 KB x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14 V ~ 1.32 V |
| Data Converters | A/D 34x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |

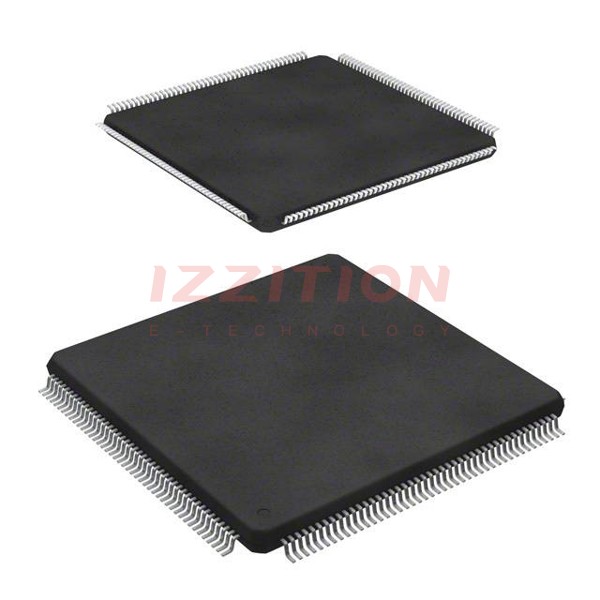

| Package / Case | 176-LQFP (24x24) |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Key Features
- Advanced features for high-performance processing with the e200z4 Power Architecture core.
- Up to 4 MB of flash memory and 248 KB of RAM.
- Efficient handling of complex tasks, ideal for real-time control systems.
- High-speed data processing and low latency capabilities.
- Robust architecture suitable for automotive, industrial automation, and other high-performance industries.
- Power efficiency and scalability.
- On-chip CAN/SCI Bootstrap loader with Boot Assist Module (BAM) and Nexus: Class 3+ for core; Class 1 for eTPU.
- Multiple power reduction modes: slow, stop, and standby.
- Flexible supply scheme with 5 V single supply and multiple external supply options (5 V, 3.3 V, and 1.2 V).
Applications
- Mid-range engine control and automotive transmission control.
- Powerful engine control units.
- Efficient electric motor control.
- Industrial automation.
- Other high-performance industries requiring real-time control systems.
Q & A
- What is the core processor of the SPC564A70L7COBR microcontroller?
The core processor is the e200z4 Power Architecture core. - What is the maximum speed of the SPC564A70L7COBR?
The maximum speed is 120 MHz. - What types of connectivity does the SPC564A70L7COBR support?
The device supports CANbus, EBI/EMI, LINbus, SCI, and SPI. - How much program memory does the SPC564A70L7COBR have?
The device has 2 MB (2M x 8) of flash memory. - What is the operating temperature range of the SPC564A70L7COBR?
The operating temperature range is -40°C ~ 125°C (TA). - What package types are available for the SPC564A70L7COBR?
The device is available in 176-LQFP (24x24) package. - Is the SPC564A70L7COBR RoHS compliant?
Yes, the device is lead free and RoHS compliant. - What are the power reduction modes available on the SPC564A70L7COBR?
The device has slow, stop, and standby power reduction modes. - What is the moisture sensitivity level (MSL) of the SPC564A70L7COBR?
The MSL is 3 (168 Hours). - What are the typical applications of the SPC564A70L7COBR?
Typical applications include mid-range engine control, automotive transmission control, and industrial automation.
