MD2310FX
  • Share:

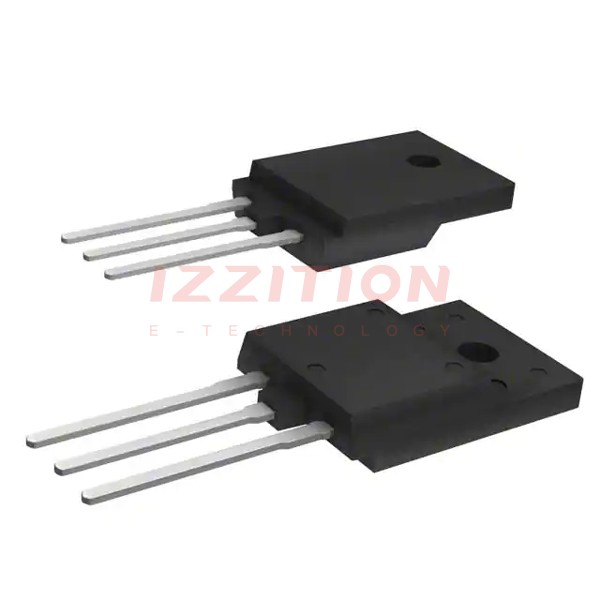

STMicroelectronics MD2310FX

Manufacturer No:
MD2310FX
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
TRANS NPN 700V 14A TO3PF
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MD2310FX is a bipolar junction transistor (BJT) produced by STMicroelectronics. Although it is now obsolete and no longer manufactured, it was designed for various high-current applications. This transistor was part of STMicroelectronics' lineup of discrete semiconductor products, known for their reliability and performance in electronic circuits.

Key Specifications

ParameterValue
TechnologySilicon (Si)
Mounting StyleThrough Hole
Collector-Emitter Sustaining Voltage (VCEO)2.5 V (sat) at IC = 7 A, IB = 1.75 A
Emitter Cut-off Current (ICEO)Specified in datasheet, but exact value not provided here
Current Gain (hFE)Specified in datasheet, but exact value not provided here

Key Features

  • High current handling capability
  • Suitable for through-hole mounting
  • Designed for high reliability in various electronic circuits
  • Part of STMicroelectronics' discrete semiconductor product line

Applications

The MD2310FX transistor was typically used in high-current applications such as power amplifiers, switching circuits, and other electronic systems requiring robust bipolar junction transistors. Despite being obsolete, its design and specifications made it suitable for a range of industrial and consumer electronics.

Q & A

  1. What is the MD2310FX transistor? The MD2310FX is a bipolar junction transistor (BJT) produced by STMicroelectronics.
  2. Is the MD2310FX still in production? No, the MD2310FX is obsolete and no longer manufactured.
  3. What is the mounting style of the MD2310FX? The MD2310FX uses a through-hole mounting style.
  4. What are some typical applications of the MD2310FX? It was used in high-current applications such as power amplifiers and switching circuits.
  5. What are the key specifications of the MD2310FX? Key specifications include collector-emitter sustaining voltage, emitter cut-off current, and current gain, among others.
  6. Where can I find substitutes for the MD2310FX? Substitutes can be found on electronics supplier websites such as Digi-Key, which lists similar transistors like the FJL6920TU from onsemi.
  7. Why is the MD2310FX no longer manufactured? The reason for its obsolescence is not specified, but it is common for electronic components to be discontinued as technology advances and newer models are introduced.
  8. How do I find detailed specifications for the MD2310FX? Detailed specifications can be found in the datasheet available on STMicroelectronics' official website or through electronics suppliers like Digi-Key and Mouser.
  9. Is the MD2310FX RoHS compliant? Yes, the MD2310FX is RoHS compliant, as indicated by the product details on supplier websites.
  10. What is the technology used in the MD2310FX? The MD2310FX uses silicon (Si) technology.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):14 A
Voltage - Collector Emitter Breakdown (Max):700 V
Vce Saturation (Max) @ Ib, Ic:2.5V @ 1.75A, 7A
Current - Collector Cutoff (Max):200µA
DC Current Gain (hFE) (Min) @ Ic, Vce:6 @ 7A, 5V
Power - Max:62 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3 Full Pack
Supplier Device Package:TO-3PF
0 Remaining View Similar

In Stock

-
26

Please send RFQ , we will respond immediately.
