Overview

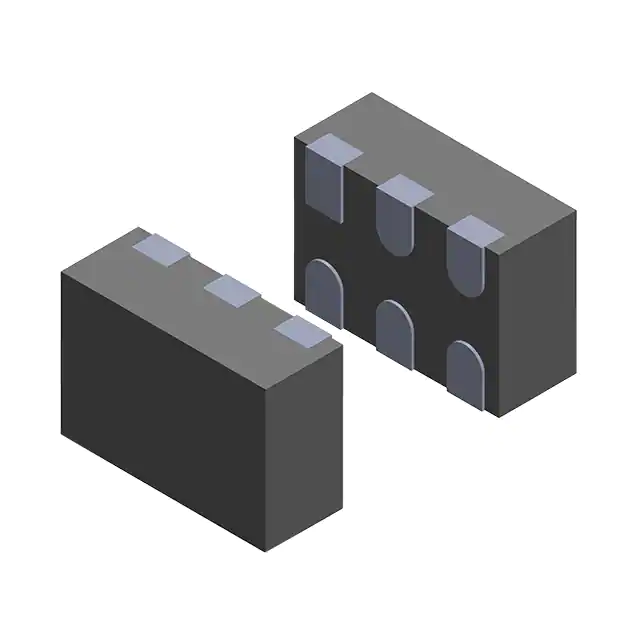

The HSP061-2M6 is a 2-channel ESD (Electrostatic Discharge) protection array designed by STMicroelectronics. It is specifically tailored for the protection of high-speed differential lines, ensuring minimal impact on signal integrity. The device features a rail-to-rail architecture, making it suitable for various high-speed interfaces. The HSP061-2M6 is packaged in a QFN-6L package, which is RoHS compliant and halogen-free, aligning with environmental standards.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Peak Pulse Voltage (Contact Discharge) | ±8 kV | kV |
| Peak Pulse Voltage (Air Discharge) | ±15 kV | kV |
| Peak Pulse Current (8/20 µs) | 3 A | A |
| Breakdown Voltage at 1 mA | 6 V | V |
| Stand-off Voltage | 3 V | V |
| Leakage Current (VRM = 3 V) | 100 nA | nA |
| Capacitance I/O to Ground | 0.6 - 0.85 pF | pF |
| Capacitance Variation I/O to Ground | 0.03 - 0.13 pF | pF |
| Cut-off Frequency at -3dB | 5.5 GHz (HSP061-2M6), 6 GHz (HSP061-2N4) | GHz |
| Operating Junction Temperature Range | -40 °C to 150 °C | °C |
| Storage Temperature Range | -65 °C to 150 °C | °C |
| Package Type | QFN-6L |
Key Features
- Flow-through routing to maintain signal integrity.
- Ultra-low capacitance of 0.6 pF, ensuring minimal influence on signal-skew.
- Large bandwidth of up to 6 GHz, compatible with 5 Gbps data rates.
- Compliance with IEC 61000-4-2, exceeding level 4 for ESD protection.
- RoHS compliant and halogen-free, meeting environmental standards.
- Operating junction temperature range from -40 °C to 150 °C.
Applications
- HDMI 1.4
- DVI
- DisplayPort
- USB 3.0
- SATA
- Ethernet
- HMI (Human-Machine Interface)
Q & A
- What is the primary function of the HSP061-2M6?
The HSP061-2M6 is designed for the protection of high-speed differential lines against electrostatic discharges (ESD).
- What is the package type of the HSP061-2M6?
The HSP061-2M6 is packaged in a QFN-6L package.
- What are the peak pulse voltage ratings for the HSP061-2M6?
The device can withstand ±8 kV for contact discharge and ±15 kV for air discharge.
- What is the capacitance of the HSP061-2M6?
The capacitance is between 0.6 pF and 0.85 pF.
- What is the operating junction temperature range of the HSP061-2M6?
The operating junction temperature range is from -40 °C to 150 °C.
- Is the HSP061-2M6 RoHS compliant?
Yes, the HSP061-2M6 is RoHS compliant and halogen-free.
- What are some common applications for the HSP061-2M6?
Common applications include HDMI 1.4, DVI, DisplayPort, USB 3.0, SATA, Ethernet, and HMI.
- What is the cut-off frequency of the HSP061-2M6?
The cut-off frequency is 5.5 GHz for the HSP061-2M6 and 6 GHz for the HSP061-2N4.
- How does the HSP061-2M6 maintain signal integrity?
The device uses flow-through routing to maintain signal integrity.
- What is the storage temperature range for the HSP061-2M6?
The storage temperature range is from -65 °C to 150 °C.
