Overview

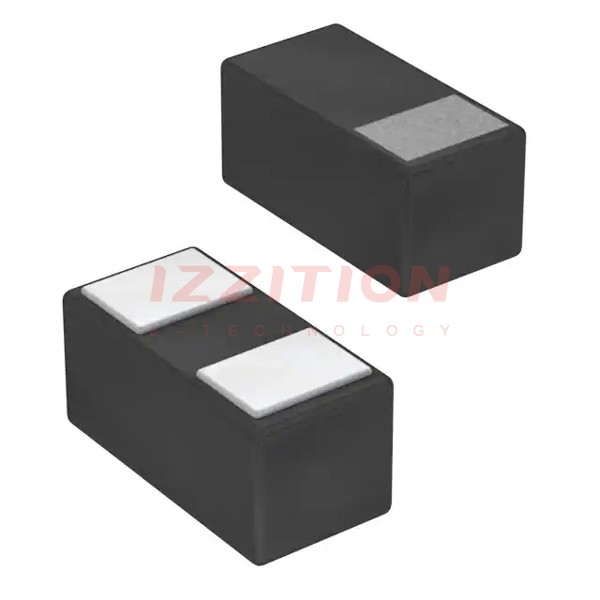

The ESDA5-1BF4 is a bidirectional single line TVS (Transient Voltage Suppressor) diode manufactured by STMicroelectronics. This device is specifically designed to protect data lines and other I/O ports against ESD (Electrostatic Discharge) transients. It is particularly suited for applications where reduced line capacitance and board space savings are essential.
Key Specifications
| Parameter | Value |
|---|---|
| Operating Temperature Min (°C) | -40.0 |
| Operating Temperature Max (°C) | 150.0 |
| ECCN US | EAR99 |
| ECCN EU | NEC |
| Package Size | 0.6 x 0.3 mm |
| Packing Type | Tape And Reel |
| RoHS Compliant | Ecopack2 |
| Grade | Industrial |
| Package Name | ST0201 |
| Clamp Voltage (V) | 11V |
| Peak Pulse Current (Ipp) (A) | 10A (8/20µs) |
Key Features
- Bidirectional single line ESD protection
- Low clamping voltage and ultra-low capacitance
- Compact ST0201 package (0.6 x 0.3 mm) for board space savings
- Rugged design to withstand ESD transients
- Rohs compliant and industrial grade
Applications
The ESDA5-1BF4 is ideal for various applications requiring ESD protection, including:
- Data lines and I/O ports in consumer electronics
- Industrial control systems and automation
- Automotive electronics
- Telecommunication devices
- Any application where reduced line capacitance and board space are critical
Q & A
- What is the primary function of the ESDA5-1BF4? The ESDA5-1BF4 is designed to protect data lines and I/O ports against ESD transients.
- What are the operating temperature ranges for the ESDA5-1BF4? The operating temperature ranges from -40°C to 150°C.
- What is the package size of the ESDA5-1BF4? The package size is 0.6 x 0.3 mm.
- Is the ESDA5-1BF4 RoHS compliant? Yes, it is RoHS compliant under the Ecopack2 standard.
- What is the clamp voltage of the ESDA5-1BF4? The clamp voltage is 11V.
- What is the peak pulse current (Ipp) of the ESDA5-1BF4? The peak pulse current is 10A (8/20µs).
- What are some typical applications for the ESDA5-1BF4? Typical applications include data lines and I/O ports in consumer electronics, industrial control systems, automotive electronics, and telecommunication devices.
- What is the ECCN classification for the ESDA5-1BF4 in the US and EU? The ECCN classification is EAR99 for the US and NEC for the EU.
- Is the ESDA5-1BF4 available in tape and reel packaging? Yes, it is available in tape and reel packaging.
- What is the industrial grade of the ESDA5-1BF4? The ESDA5-1BF4 is classified as industrial grade.
