Overview

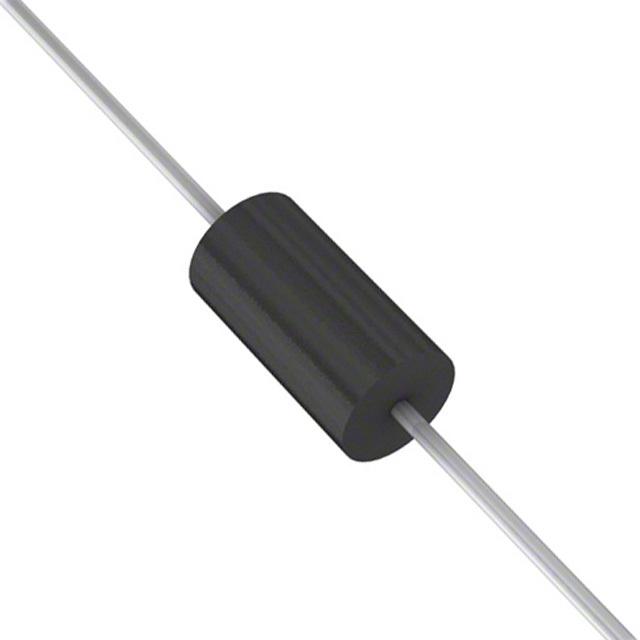

The BZW06-15BRL is a Transient Voltage Suppressor (TVS) diode manufactured by STMicroelectronics. This component is designed to protect sensitive electronic equipment from electrostatic discharges and electrical overstress, adhering to standards such as IEC 61000-4-2 and IEC 61000-4-4. The BZW06-15BRL is part of the BZW06 series, which offers a range of stand-off voltages and is available in both unidirectional and bidirectional configurations.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Peak Pulse Power Dissipation (10/1000 μs) | 600 | W |
| Peak Pulse Power Dissipation (8/20 μs) | Up to 4 kW | W |
| Stand-off Voltage (VRM) | 15 | V |
| Breakdown Voltage (VBR) | 17.1 | V |
| Maximum Forward Impulse Current | 24 | A |
| Leakage Current (IRM) | 1 mA | |
| Operating Junction Temperature Range | -55 to +175 | °C |
| Storage Temperature Range | -65 to +175 | °C |
| Package Type | DO-15 (JEDEC DO-204AC) | |
| Semiconductor Structure | Bidirectional | |
| Tolerance | ±5% |
Key Features
- High Surge Capability: The BZW06-15BRL can handle peak pulse power dissipation of up to 600 W at 10/1000 μs and up to 4 kW at 8/20 μs.
- Fast Response Time: Typically less than 1.0 ps from 0 volts to VBR for unidirectional and 5.0 ns for bidirectional types.
- Low Leakage Current: Less than 1 μA above 10 V, ensuring minimal power consumption in standby mode.
- High Temperature Soldering: Guaranteed up to 260°C for 10 seconds, making it suitable for high-temperature soldering processes.
- Environmental Compliance: Meets various environmental standards including UL94 V0, J-STD-020 MSL level 1, and MIL-STD-19500.
- Excellent Clamping Capability: Provides effective voltage clamping to protect against transient voltages.
- Low Zener Impedance: Ensures stable operation under varying conditions.
Applications
- Power Supplies and SMPS: Ideal for protecting power supplies and Switch-Mode Power Supplies (SMPS) from voltage surges and spikes.
- Telecommunication Equipment: Used to protect telecommunication equipment from electrical overstress and electrostatic discharges.
- Industrial Control Systems: Protects industrial control systems and automation equipment from transient voltages.
- Consumer Electronics: Suitable for use in consumer electronics to protect against voltage surges and spikes.
Q & A
- What is the peak pulse power dissipation of the BZW06-15BRL?
The peak pulse power dissipation is up to 600 W at 10/1000 μs and up to 4 kW at 8/20 μs.
- What is the stand-off voltage (VRM) of the BZW06-15BRL?
The stand-off voltage (VRM) is 15 V.
- What is the breakdown voltage (VBR) of the BZW06-15BRL?
The breakdown voltage (VBR) is 17.1 V.
- What is the maximum forward impulse current of the BZW06-15BRL?
The maximum forward impulse current is 24 A.
- What is the operating junction temperature range of the BZW06-15BRL?
The operating junction temperature range is -55 to +175 °C.
- What package type does the BZW06-15BRL use?
The BZW06-15BRL uses the DO-15 (JEDEC DO-204AC) package type.
- Is the BZW06-15BRL bidirectional or unidirectional?
The BZW06-15BRL is a bidirectional TVS diode).
- What is the tolerance of the BZW06-15BRL?
The tolerance is ±5%).
- What are the environmental compliance standards met by the BZW06-15BRL?
The BZW06-15BRL meets various standards including UL94 V0, J-STD-020 MSL level 1, and MIL-STD-19500).
- What is the maximum soldering temperature for the BZW06-15BRL?
The maximum soldering temperature is 260°C for 10 seconds).
