Overview

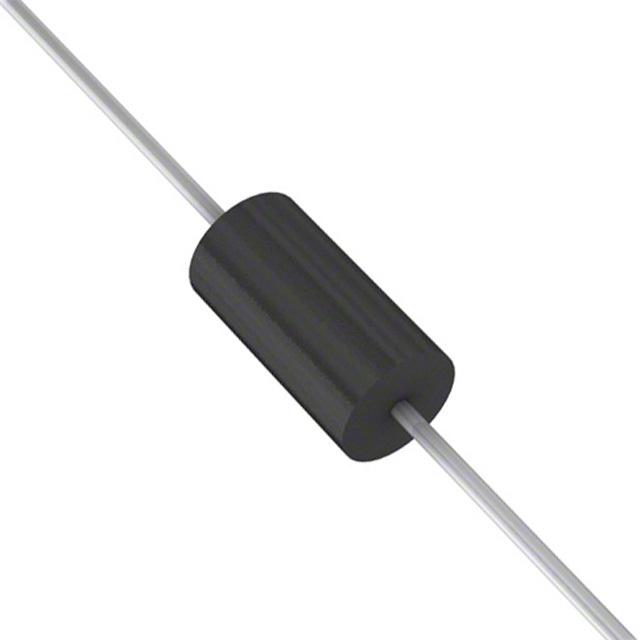

The BZW06-15B is a Transient Voltage Suppressor (TVS) diode produced by STMicroelectronics. This component is designed to protect sensitive electronic equipment from electrostatic discharges and electrical overstress, adhering to standards such as IEC 61000-4-2, MIL STD 883 Method 3015, and IEC 61000-4-4 and 5. The BZW06-15B is part of the BZW06 TVS series, which offers high reliability and stability, particularly in high-end equipment and Switch-Mode Power Supplies (SMPS) where low leakage current and high junction temperature are critical.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Peak Pulse Power Dissipation (10/1000 μs) | 600 | W |
| Stand-off Voltage (VRM) | 15 | V |
| Breakdown Voltage (VBR) | 17.1 | V |
| Maximum Forward Impulse Current (IFSM) | 100 | A |
| Operating Junction Temperature Range (Tj) | -55 to +175 | °C |
| Storage Temperature Range (Tstg) | -65 to +175 | °C |
| Maximum Lead Temperature for Soldering | 260 | °C |
| Semiconductor Structure | Bidirectional | |
| Case | DO-15 | |
| Mounting Type | Through-Hole (THT) | |
| Leakage Current (IRM) | < 1 mA |
Key Features
- High surge capability: 600 W at 10/1000 μs waveform.
- Excellent clamping capability and low zener impedance.
- Fast response time: typically less than 1.0 ps for unidirectional and 5.0 ns for bidirectional types.
- Low leakage current: typically less than 1 μA above 10 V.
- High temperature soldering guaranteed: up to 260°C for 10 seconds.
- Compliance with various standards: IEC 61000-4-2, MIL STD 883 Method 3015, IEC 61000-4-4, and UL94 V0.
- ECOPACK compliant, ensuring environmental compliance.
Applications
The BZW06-15B TVS diode is suitable for a variety of applications where protection against electrostatic discharges and electrical overstress is crucial. These include:
- Switch-Mode Power Supplies (SMPS).
- High-end electronic equipment requiring low leakage current and high junction temperature stability.
- Industrial and automotive systems exposed to transient voltages.
- Telecommunication and data transmission systems.
Q & A
- What is the primary function of the BZW06-15B TVS diode?
The primary function of the BZW06-15B TVS diode is to protect sensitive electronic equipment from electrostatic discharges and electrical overstress.
- What is the peak pulse power dissipation of the BZW06-15B?
The peak pulse power dissipation of the BZW06-15B is 600 W at 10/1000 μs waveform.
- What is the breakdown voltage (VBR) of the BZW06-15B?
The breakdown voltage (VBR) of the BZW06-15B is 17.1 V.
- What is the operating junction temperature range of the BZW06-15B?
The operating junction temperature range of the BZW06-15B is -55 to +175 °C.
- Is the BZW06-15B compliant with environmental standards?
Yes, the BZW06-15B is ECOPACK compliant, ensuring environmental compliance.
- What type of semiconductor structure does the BZW06-15B have?
The BZW06-15B has a bidirectional semiconductor structure.
- What is the maximum forward impulse current (IFSM) of the BZW06-15B?
The maximum forward impulse current (IFSM) of the BZW06-15B is 100 A.
- What is the leakage current of the BZW06-15B?
The leakage current of the BZW06-15B is typically less than 1 mA.
- What are the dimensions of the DO-15 package for the BZW06-15B?
The DO-15 package dimensions for the BZW06-15B are approximately 6.4 x 3.45 mm.
- Is the BZW06-15B suitable for high-temperature soldering?
Yes, the BZW06-15B is guaranteed for high-temperature soldering up to 260°C for 10 seconds.
