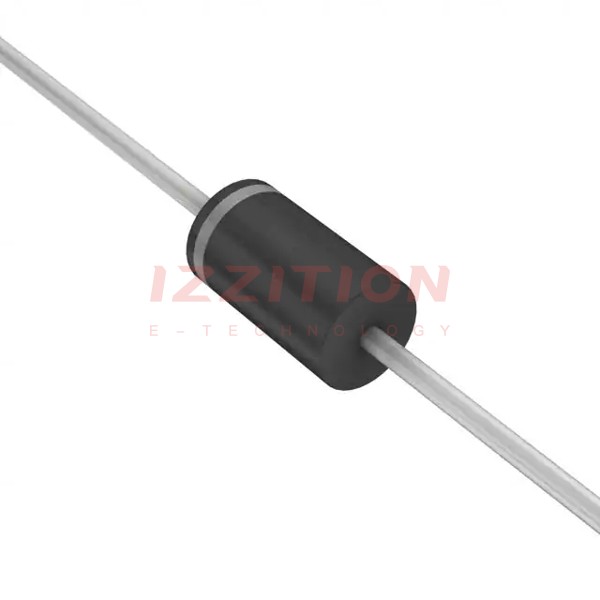

STMicroelectronics BYW98-200

The BYW98-200 is a high-efficiency fast recovery rectifier diode produced by STMicroelectronics. This component is designed for low voltage drop and is particularly suited for switching mode base drive and transistor circuits. It offers excellent performance in applications requiring fast recovery times and high efficiency.

• High efficiency fast recovery rectifier diode
• Low voltage drop
• Suitable for switching mode base drive and transistor circuits
• Fast recovery time of 35 ns
• High surge current capability up to 70 A
• Wide operating junction temperature range from -40°C to 150°C

The BYW98-200 is ideal for various applications including:

• Switching mode power supplies
• Base drive circuits for power transistors
• High-frequency rectification
• Power conversion and management systems

1. What is the repetitive peak reverse voltage of the BYW98-200? The repetitive peak reverse voltage (V_RRM) is 200 V.
2. What is the forward voltage drop of the BYW98-200? The forward voltage drop (V_f) is 1.2 V.
3. What is the maximum surge current the BYW98-200 can handle? The maximum surge current (I_FSM) is 70 A.
4. What is the recovery time of the BYW98-200? The recovery time (t_rr) is 35 ns.
5. What is the operating junction temperature range of the BYW98-200? The operating junction temperature range is from -40°C to 150°C.
6. What type of applications is the BYW98-200 suited for? The BYW98-200 is suited for switching mode base drive and transistor circuits, high-frequency rectification, and power conversion systems.
7. Who is the manufacturer of the BYW98-200? The BYW98-200 is manufactured by STMicroelectronics.
8. What is the RMS forward current rating of the BYW98-200? The RMS forward current (I_F(RMS)) is 10 A.
9. What is the reverse current of the BYW98-200? The reverse current (I_r) is 10 μA.
10. Is the BYW98-200 a high-efficiency diode? Yes, the BYW98-200 is a high-efficiency fast recovery rectifier diode.
