Overview
The 74V1GU04CTR is an advanced high-speed CMOS single inverter fabricated by STMicroelectronics using sub-micron silicon gate and double-layer metal wiring C2MOS technology. This single-stage inverter is designed for high-speed logic operations and is part of the 74V series, known for its low power consumption and high performance.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Part Number | 74V1GU04CTR |

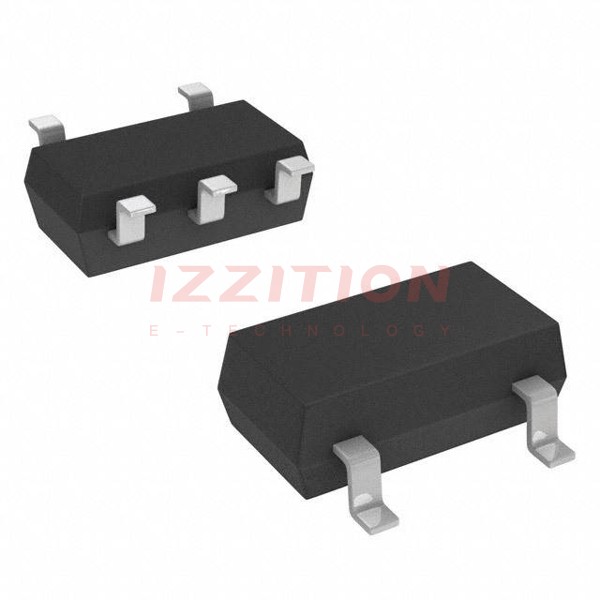

| Package Type | SOT323-5 |
| Number of Channels | 1 |
| Number of Inputs | 1 |
| Logic Function | Single Inverter (Single Stage) |
| Supply Voltage | 1.65V to 5.5V |
| Operating Temperature | -40°C to 125°C |
| Propagation Delay | Typically 3.5 ns at 3.3V, 5.5 ns at 2.5V, and 7.5 ns at 1.8V |
Key Features
- High-speed CMOS technology with sub-micron silicon gate and double-layer metal wiring.
- Low power consumption.
- Wide operating voltage range from 1.65V to 5.5V.
- Compact SOT323-5 package.
- High noise immunity.
- Compliant with JEDEC standard No. 7A.
Applications
The 74V1GU04CTR is suitable for a variety of applications requiring high-speed logic operations, including:
- Digital signal processing.
- High-speed data transmission systems.
- Low power consumer electronics.
- Automotive and industrial control systems.
- Telecommunication equipment.
Q & A
- What is the part number of this component? The part number is 74V1GU04CTR.
- Who is the manufacturer of this component? The manufacturer is STMicroelectronics.
- What is the package type of this component? The package type is SOT323-5.
- How many channels does this inverter have? This inverter has one channel.
- What is the operating voltage range of this component? The operating voltage range is from 1.65V to 5.5V.
- What is the typical propagation delay at 3.3V? The typical propagation delay at 3.3V is 3.5 ns.
- Is this component still in production? No, this product is obsolete and no longer manufactured.
- What are some common applications for this component? Common applications include digital signal processing, high-speed data transmission systems, low power consumer electronics, and automotive and industrial control systems.
- What technology is used in the fabrication of this component? This component is fabricated using sub-micron silicon gate and double-layer metal wiring C2MOS technology.
- What is the operating temperature range of this component? The operating temperature range is from -40°C to 125°C.
