Overview
The NC7SZ157P6X-F40-FS is a high-performance, 2-to-1 CMOS non-inverting multiplexer from Fairchild Semiconductor's Ultra-High Speed series of TinyLogic®. This device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. It is designed to operate within a VCC range of 1.65V to 5.5V, making it versatile for various applications.
Key Specifications
| Parameter | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|
| VCC Supply Voltage | 1.65 | - | 5.5 | V |
| VIN DC Input Voltage | -0.5 | - | 7.0 | V |
| VOUT DC Output Voltage | -0.5 | - | 7.0 | V |
| TA Operating Temperature | -40 | - | 85 | °C |
| tPLH, tPHL Propagation Delay (S to Z) | 2.5 | - | 12.0 | ns |
| ICC Quiescent Supply Current | - | - | 10 | µA |
| IOH High Level Output Current | -100 | - | -32 | mA |
| IOL Low Level Output Current | 100 | - | 32 | mA |
| CIN Input Capacitance | - | - | 2 | pF |
Key Features
- Broad VCC operating range: 1.65V to 5.5V
- Ultra-high speed operation
- Power down high-impedance inputs/outputs
- Over-voltage tolerance inputs facilitate 5V to 3V translation
- Proprietary noise/EMI reduction circuitry
- Ultra-small MicroPak™ and SC70 packages for space-saving designs
Applications
The NC7SZ157P6X-F40-FS is suitable for a variety of applications requiring high-speed signal switching and multiplexing. These include but are not limited to:
- High-speed data transmission systems
- Signal processing and conditioning circuits
- Low-power and low-voltage logic circuits
- Embedded systems and microcontrollers
- Communication and networking equipment
Q & A
- What is the operating voltage range of the NC7SZ157P6X-F40-FS?
The operating voltage range is from 1.65V to 5.5V. - What is the propagation delay of the NC7SZ157P6X-F40-FS?
The propagation delay (S to Z) ranges from 2.5 ns to 12.0 ns depending on the VCC and load conditions. - What are the package options available for the NC7SZ157P6X-F40-FS?

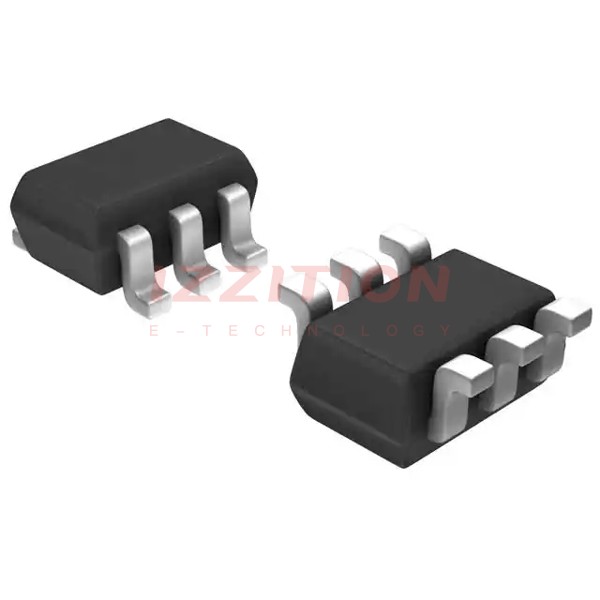

The device is available in 6-Lead SC70, 6-Lead MicroPak™, and 6-Lead MicroPak2 packages. - What is the maximum output current of the NC7SZ157P6X-F40-FS?
The maximum output current is ±32 mA. - Is the NC7SZ157P6X-F40-FS RoHS compliant?
Yes, the device is RoHS compliant. - What is the thermal resistance of the SC70 package?
The thermal resistance (θJA) of the SC70 package is 350 °C/W. - Can the NC7SZ157P6X-F40-FS handle over-voltage inputs?
Yes, the inputs can tolerate voltages up to 5.5V independent of the VCC operating range. - What is the quiescent supply current of the NC7SZ157P6X-F40-FS?
The quiescent supply current (ICC) is up to 10 µA. - What is the input capacitance of the NC7SZ157P6X-F40-FS?
The input capacitance (CIN) is up to 2 pF. - Is the NC7SZ157P6X-F40-FS suitable for high-speed applications?
Yes, it is designed for ultra-high speed operation.
