Overview

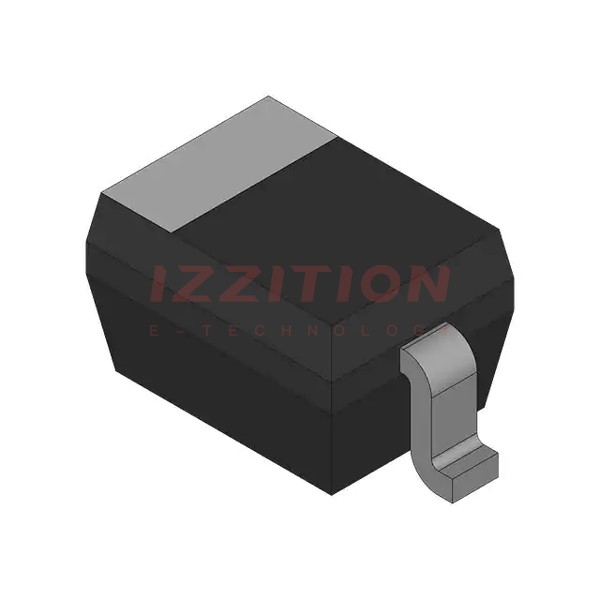

The PDZ33B_R1_00001 is a low-power general-purpose voltage regulator diode manufactured by Nexperia. It is packaged in a very small SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package. This diode is designed for voltage regulation and is suitable for a wide range of applications where a stable voltage reference is required.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Type Number | PDZ33B | - |
| Orderable Part Number | PDZ33B,115 | - |
| Package | SOD323 (SC-76) | - |
| Zener Voltage | 32.97 V | V |
| Power Dissipation | 400 mW | mW |
| RoHS Status | RoHS Compliant | - |
Key Features
- Low power consumption with a maximum power dissipation of 400 mW.
- Compact SOD323 (SC-76) package, ideal for space-constrained designs.
- General-purpose voltage regulator diode suitable for various applications.
- RoHS compliant, ensuring environmental sustainability.
Applications
- Voltage regulation in electronic circuits.
- Overvoltage protection in various electronic devices.
- Stable voltage reference in power supplies and voltage regulators.
- Use in automotive, industrial, and consumer electronics.
Q & A
- What is the primary function of the PDZ33B_R1_00001 diode?
The primary function is to act as a voltage regulator and provide a stable voltage reference in electronic circuits.
- What is the package type of the PDZ33B_R1_00001 diode?
The diode is packaged in a SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package.
- What is the maximum power dissipation of the PDZ33B_R1_00001 diode?
The maximum power dissipation is 400 mW.
- Is the PDZ33B_R1_00001 diode RoHS compliant?
Yes, the diode is RoHS compliant.
- What are some common applications of the PDZ33B_R1_00001 diode?
Common applications include voltage regulation, overvoltage protection, and providing a stable voltage reference in various electronic devices.
- Who is the manufacturer of the PDZ33B_R1_00001 diode?
The manufacturer is Nexperia.
- What is the zener voltage of the PDZ33B_R1_00001 diode?
The zener voltage is 32.97 V.
- Can the PDZ33B_R1_00001 diode be used in automotive applications?
Yes, it can be used in automotive applications among others.
- How can I obtain the datasheet for the PDZ33B_R1_00001 diode?
You can download the datasheet from the official Nexperia website or from authorized distributors.
- What are the ordering codes for the PDZ33B_R1_00001 diode?
The ordering codes include PDZ33B,115, PDZ33BF, and PDZ33BZ.
