BAT42WS-AU_R1_000A1
  • Share:

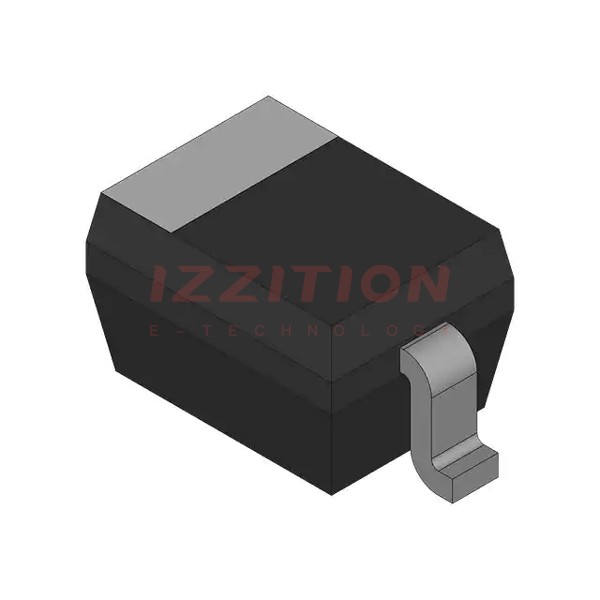

Panjit International Inc. BAT42WS-AU_R1_000A1

Manufacturer No:
BAT42WS-AU_R1_000A1
Manufacturer:
Panjit International Inc.
Package:
Tape & Reel (TR)
Description:
SURFACE MOUNT SCHOTTKY DIODE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BAT42WS-AU_R1_000A1 is a surface mount Schottky diode produced by Panjit International Inc. This component is designed for high-efficiency and low power loss applications. It features a low forward voltage drop, making it ideal for various electronic circuits where minimal voltage loss is crucial. The diode is packaged in a SOD-323 case, which is suitable for automated placement and is fully compliant with EU RoHS 2.0 and AEC-Q101 standards.

Key Specifications

Parameter Symbol Value Unit
Maximum Repetitive Peak Reverse Voltage VRRM 30 V
Maximum RMS Voltage VRMS 21 V
Maximum DC Blocking Voltage VDC 30 V
Maximum Average Forward Current IF(AV) 0.2 A
Peak Forward Surge Current (1 ms Single Half Sine-Wave) IFSM 4 A
Typical Junction Capacitance (at 1 MHz, VR = 0 V) CJ 4 pF
Thermal Resistance Junction to Ambient Air RθJA 650 °C/W
Operating Junction Temperature Range TJ -55 to 125 °C
Storage Temperature Range TSTG -55 to 125 °C
Forward Voltage (IF = 10 mA, TJ = 25 °C) VF 0.4 V
Forward Voltage (IF = 200 mA, TJ = 25 °C) VF 1 V
Reverse Current (VR = 30 V, TJ = 25 °C) IR 0.5 μA

Key Features

  • Low forward voltage drop, ensuring high efficiency and minimal power loss.
  • Suitable for automated placement due to its SOD-323 package.
  • High surge current capability, with a peak forward surge current of 4 A.
  • Lead-free and fully compliant with EU RoHS 2.0 and AEC-Q101 standards.
  • Green molding compound as per IEC 61249 standard.
  • Fast switching and ultra-small surface mount package.

Applications

The BAT42WS-AU_R1_000A1 Schottky diode is versatile and can be used in a variety of applications, including:

  • Power supply circuits where low voltage drop is essential.
  • Switching circuits that require fast recovery times.
  • Automotive systems due to its AEC-Q101 qualification.
  • General-purpose rectification in electronic devices.
  • High-frequency applications due to its low junction capacitance.

Q & A

  1. What is the maximum repetitive peak reverse voltage of the BAT42WS-AU_R1_000A1?

    The maximum repetitive peak reverse voltage is 30 V.

  2. What is the maximum average forward current for this diode?

    The maximum average forward current is 0.2 A.

  3. What is the peak forward surge current capability of this diode?

    The peak forward surge current is 4 A for a single half sine-wave pulse of 1 ms duration.

  4. Is the BAT42WS-AU_R1_000A1 RoHS compliant?
  5. What is the operating junction temperature range for this diode?

    The operating junction temperature range is -55 to 125 °C.

  6. What is the typical forward voltage drop at 10 mA and 25 °C?

    The typical forward voltage drop is 0.4 V at 10 mA and 25 °C.

  7. Is the BAT42WS-AU_R1_000A1 suitable for automotive applications?
  8. What is the thermal resistance junction to ambient air for this diode?

    The thermal resistance junction to ambient air is 650 °C/W.

  9. What is the storage temperature range for this diode?

    The storage temperature range is -55 to 125 °C.

  10. What is the typical junction capacitance at 1 MHz and 0 V reverse bias?

    The typical junction capacitance is 4 pF at 1 MHz and 0 V reverse bias.

Product Attributes

Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io):200mA
Voltage - Forward (Vf) (Max) @ If:1 V @ 200 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:500 nA @ 30 V
Capacitance @ Vr, F:4pF @ 0V, 1MHz
Mounting Type:Surface Mount
Package / Case:SC-90, SOD-323F
Supplier Device Package:SOD-323
Operating Temperature - Junction:-55°C ~ 125°C
0 Remaining View Similar

In Stock

$0.26
234

Please send RFQ , we will respond immediately.

Same Series
RD15S10HV50/AA
RD15S10HV50/AA
CONN D-SUB RCPT 15POS CRIMP
CBC13W3S10HE30/AA
CBC13W3S10HE30/AA
CONN D-SUB RCPT 13POS CRIMP
DD44S32S0TS/AA
DD44S32S0TS/AA
CONN D-SUB HD RCPT 44P VERT SLDR
DD26M20HE0/AA
DD26M20HE0/AA
CONN D-SUB HD PLUG 26P SLDR CUP
DD26S10H00/AA
DD26S10H00/AA
CONN D-SUB HD RCPT 26POS CRIMP
DD26S2F000/AA
DD26S2F000/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD15S20JVLS
DD15S20JVLS
CONN D-SUB HD RCPT 15P SLDR CUP
DD44S3200V30
DD44S3200V30
CONN D-SUB HD RCPT 44P VERT SLDR
CBC17W2S10HT2S/AA
CBC17W2S10HT2S/AA
CONN D-SUB RCPT 17POS CRIMP
DD44S32S60T2X
DD44S32S60T2X
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S60V3X/AA
DD44S32S60V3X/AA
CONN D-SUB HD RCPT 44P VERT SLDR
DD26S20WE30/AA
DD26S20WE30/AA
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number BAT42WS-AU_R1_000A1 BAT43WS-AU_R1_000A1
Manufacturer Panjit International Inc. Panjit International Inc.
Product Status Active Active
Diode Type Schottky Schottky
Voltage - DC Reverse (Vr) (Max) 30 V 30 V
Current - Average Rectified (Io) 200mA 200mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 200 mA 1 V @ 200 mA
Speed Small Signal =< 200mA (Io), Any Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) - -
Current - Reverse Leakage @ Vr 500 nA @ 30 V 500 nA @ 30 V
Capacitance @ Vr, F 4pF @ 0V, 1MHz 5pF @ 4V, 1MHz
Mounting Type Surface Mount Surface Mount
Package / Case SC-90, SOD-323F SC-90, SOD-323F
Supplier Device Package SOD-323 SOD-323
Operating Temperature - Junction -55°C ~ 125°C -55°C ~ 125°C
