Overview

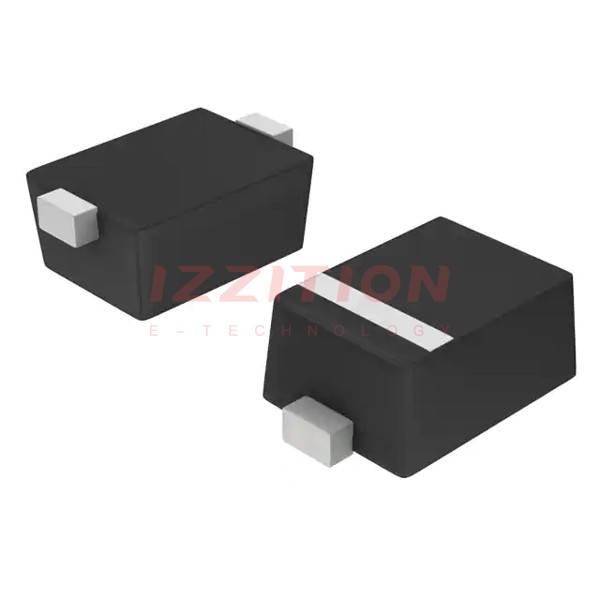

The NZ9F3V6T5G is a Zener diode voltage regulator produced by onsemi, designed to provide voltage regulation and protection in various electronic applications. This component is packaged in a SOD-923 surface mount package, making it suitable for high-density PCBs and space-constrained designs. It is particularly attractive for use in cellular phones, handheld portables, and other compact electronic devices.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Standard Zener Breakdown Voltage | 3.42 - 3.78 | V |
| Steady State Power Rating | 250 | mW |
| Package Type | SOD-923 | |
| Body Dimensions | 0.039" x 0.024" (1.00 mm x 0.60 mm) | |
| Body Height | 0.016" (0.40 mm) | |
| ESD Rating | Class 3 (>16 kV) per Human Body Model | |
| Junction and Storage Temperature Range | -65 to +150 | °C |
| Thermal Resistance from Junction-to-Ambient | 500 | °C/W |
| Maximum Total Device Dissipation | 250 mW @ TA = 25°C | |
| Derate above 25°C | 2.0 mW/°C |
Key Features
- Pb-free, halogen-free/BFR-free, and RoHS compliant
- AEC-Q101 qualified and PPAP capable for automotive and other critical applications
- Low body height and small body outline dimensions, ideal for high-density PCBs
- High ESD rating of Class 3 (>16 kV) per Human Body Model
- Void-free, transfer-molded, thermosetting plastic epoxy case meeting UL 94 V-0
- 100% matte Sn (tin) lead finish
Applications
The NZ9F3V6T5G Zener diode is well-suited for a variety of applications, including:
- Cellular phones and handheld portable devices
- High-density PC boards
- Automotive electronics requiring AEC-Q101 qualification
- Industrial and consumer electronics where space is at a premium
Q & A
- What is the package type of the NZ9F3V6T5G? The NZ9F3V6T5G is packaged in a SOD-923 surface mount package.
- What is the steady state power rating of the NZ9F3V6T5G? The steady state power rating is 250 mW.
- What is the ESD rating of the NZ9F3V6T5G? The ESD rating is Class 3 (>16 kV) per Human Body Model.
- Is the NZ9F3V6T5G RoHS compliant? Yes, the NZ9F3V6T5G is Pb-free, halogen-free/BFR-free, and RoHS compliant.
- What are the typical applications for the NZ9F3V6T5G? Typical applications include cellular phones, handheld portables, high-density PC boards, and automotive electronics.
- What is the junction and storage temperature range for the NZ9F3V6T5G? The junction and storage temperature range is -65 to +150°C.
- What is the thermal resistance from junction-to-ambient for the NZ9F3V6T5G? The thermal resistance from junction-to-ambient is 500°C/W.
- Is the NZ9F3V6T5G AEC-Q101 qualified? Yes, the NZ9F3V6T5G is AEC-Q101 qualified and PPAP capable.
- What is the maximum total device dissipation for the NZ9F3V6T5G at 25°C? The maximum total device dissipation at 25°C is 250 mW.
- How does the power dissipation derate above 25°C? The power dissipation derates by 2.0 mW/°C above 25°C.
