Overview

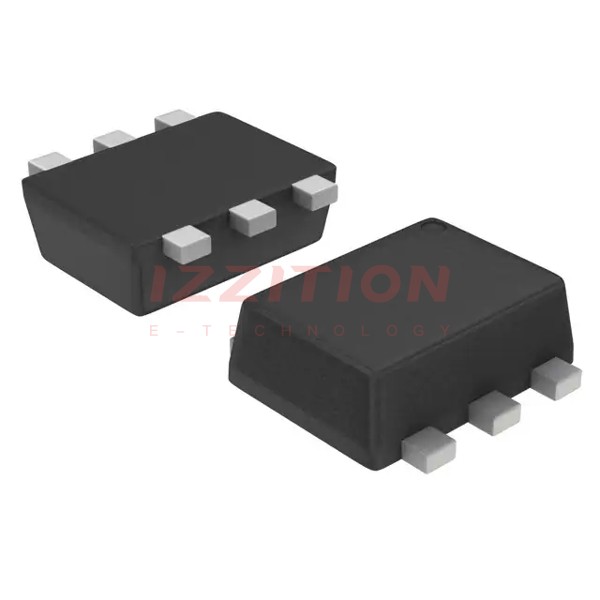

The NUP4102XV6T1G is a 6-pin bi-directional transient suppressor array designed and manufactured by onsemi. This component is specifically engineered to provide transient overvoltage protection in various electronic applications. It is housed in a compact SOT-563 package, making it suitable for space-constrained designs. The NUP4102XV6T1G is part of onsemi's extensive range of circuit protection solutions, ensuring robust and reliable protection against electrical surges and ESD (Electrostatic Discharge) events.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | SOT-563 |
| Number of Pins | 6 |
| Clamping Voltage (Vc) | 13.6V |
| Peak Pulse Current (Ipp) | 30A (10/1000μs) |
| Standoff Voltage (Vwm) | 5V to 24V |
| Operating Temperature Range | -55°C to +150°C |
| ESD Protection | IEC 61000-4-2 Level 4 |
| RoHS Compliance | Yes |
Key Features
- Bi-directional transient suppressor array for comprehensive protection.
- Compact SOT-563 package suitable for space-constrained designs.
- High peak pulse current capability (30A for 10/1000μs pulse).
- IEC 61000-4-2 Level 4 ESD protection.
- Wide operating temperature range (-55°C to +150°C).
- RoHS compliant.
Applications
The NUP4102XV6T1G is designed for use in a variety of applications requiring transient overvoltage protection, including:
- Consumer electronics.
- Industrial control systems.
- Automotive systems.
- Telecommunications equipment.
- Medical devices.
Q & A
- What is the primary function of the NUP4102XV6T1G?
The primary function is to provide transient overvoltage protection and ESD protection in electronic circuits. - What package type is the NUP4102XV6T1G available in?
The component is housed in a SOT-563 package. - What is the peak pulse current rating of the NUP4102XV6T1G?
The peak pulse current rating is 30A for a 10/1000μs pulse. - Is the NUP4102XV6T1G RoHS compliant?
Yes, it is RoHS compliant. - What is the operating temperature range of the NUP4102XV6T1G?
The operating temperature range is -55°C to +150°C. - What level of ESD protection does the NUP4102XV6T1G offer?
The component offers IEC 61000-4-2 Level 4 ESD protection. - In what types of applications is the NUP4102XV6T1G typically used?
It is used in consumer electronics, industrial control systems, automotive systems, telecommunications equipment, and medical devices. - What is the standoff voltage range of the NUP4102XV6T1G?
The standoff voltage range is from 5V to 24V. - How many pins does the NUP4102XV6T1G have?
The component has 6 pins. - What is the clamping voltage of the NUP4102XV6T1G?
The clamping voltage is 13.6V.
