Overview

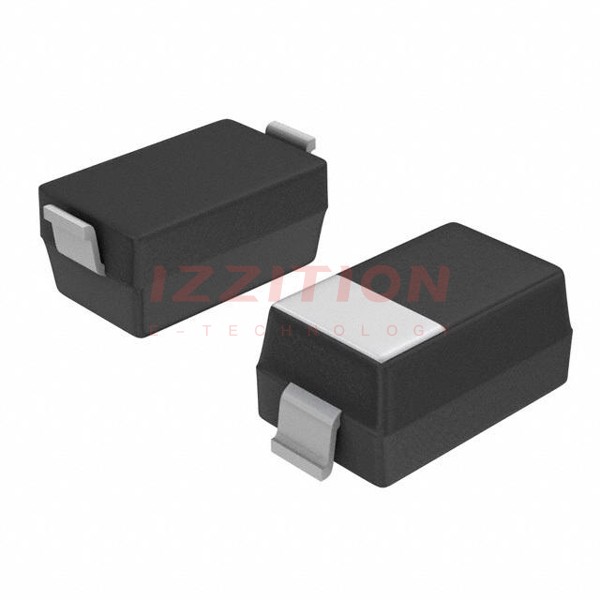

The NRVB0540T3G is a surface mount Schottky power rectifier produced by ON Semiconductor. This component employs the Schottky Barrier principle, which offers an optimal forward voltage drop and reverse current tradeoff. It is designed for low voltage, high frequency rectification and can be used as free-wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical.
Key Specifications
| Rating | Symbol | Value | Unit |
|---|---|---|---|
| Peak Repetitive Reverse Voltage | VRRM | 40 | V |
| Working Peak Reverse Voltage | VRWM | 40 | V |
| DC Blocking Voltage | VR | 40 | V |
| Average Rectified Forward Current (At Rated VR, TC = 115°C) | IO | 0.5 | A |
| Peak Repetitive Forward Current (At Rated VR, Square Wave, 20 kHz, TC = 115°C) | IFRM | 1.0 | A |
| Non-Repetitive Peak Surge Current (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz) | IFSM | 5.5 | A |
| Storage/Operating Case Temperature Range | Tstg, TC | −55 to +150 | °C |
| Operating Junction Temperature | TJ | −55 to +150 | °C |
| Voltage Rate of Change (Rated VR, TJ = 25°C) | dv/dt | 1000 | V/μs |
| Maximum Instantaneous Forward Voltage (TJ = 25°C, iF = 0.5 A) | vF | 0.51 | V |
| Maximum Instantaneous Reverse Current (TJ = 25°C, VR = 40 V) | IR | 20 | μA |
| Thermal Resistance − Junction-to-Lead | Rtjl | 118 | °C/W |
| Thermal Resistance − Junction-to-Ambient | Rtja | 206 | °C/W |
| ESD Rating - Human Body Model | 3B | ||
| ESD Rating - Machine Model | C | ||
| Package | SOD-123 (Pb-Free) | ||
| Shipping | 10,000/Tape & Reel (8 mm Tape, 13” Reel) |
Key Features
- Guardring for Stress Protection
- Very Low Forward Voltage Drop
- Epoxy Meets UL 94 V-0 @ 0.125 in
- Package Designed for Optimal Automated Board Assembly
- AEC-Q101 Qualified and PPAP Capable
- NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- All Packages are Pb-Free
- Corrosion Resistant and Terminal Leads are Readily Solderable
- Lead and Mounting Surface Temperature for Soldering Purposes: 260°C max. for 10 Seconds
Applications
The NRVB0540T3G is ideally suited for various applications including:
- Low voltage, high frequency rectification
- Free-wheeling diodes
- Polarity protection diodes
- Surface mount applications where compact size and weight are critical
- Automotive and other applications requiring unique site and control change requirements
Q & A
- What is the peak repetitive reverse voltage of the NRVB0540T3G?
The peak repetitive reverse voltage is 40 V.
- What is the average rectified forward current of the NRVB0540T3G at TC = 115°C?
The average rectified forward current is 0.5 A.
- What is the maximum instantaneous forward voltage at TJ = 25°C and iF = 0.5 A?
The maximum instantaneous forward voltage is 0.51 V.
- What is the thermal resistance - junction-to-ambient of the NRVB0540T3G?
The thermal resistance - junction-to-ambient is 206 °C/W.
- Is the NRVB0540T3G Pb-Free?
Yes, the NRVB0540T3G is Pb-Free.
- What is the ESD rating of the NRVB0540T3G according to the Human Body Model?
The ESD rating is 3B.
- What is the package type of the NRVB0540T3G?
The package type is SOD-123.
- What are the typical applications of the NRVB0540T3G?
Typical applications include low voltage, high frequency rectification, free-wheeling diodes, and polarity protection diodes.
- Is the NRVB0540T3G AEC-Q101 qualified?
Yes, the NRVB0540T3G is AEC-Q101 qualified and PPAP capable.
- What is the storage/operating case temperature range of the NRVB0540T3G?
The storage/operating case temperature range is −55 to +150 °C.
